WAVE Acoustics – GRADATION Panel

WAVE Acoustics fills in our acoustic offerings with a very focused line of very durable recycled PET ‘wave’ panels. European recycled, sourced, and made, WAVE Acoustics leaves no question as to the content of the PET products used. Averaging between 65-89% of ‘recycled’ input material, the wave panels are extremely durable, rigid, and can be installed in a number of different ways, providing at a minimum of a 0.65 NRC (going up to 0.85 NRC with air space).

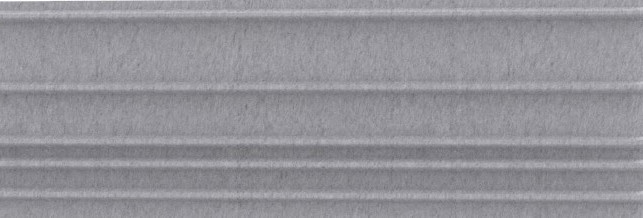

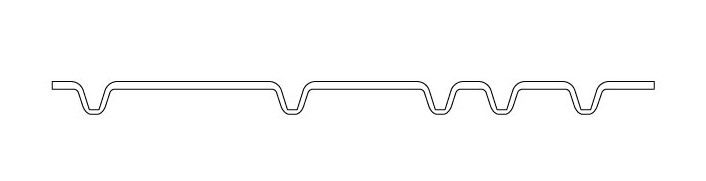

The GRADATION Panels consist of increasingly gradational flat sections which are broken up by parallel, equal height, ribs. The GRADATION panels can be split into sections, and have the pattern repeat indefinitely.

Features

Made from recycled PET (65-85% based on color)
Rigid panel with a high NRC value
Available in standard or fire-retardant versions
Easy installation process

Panel Details

Panel Size: 2.39m x 0.79m (94.1” x 31.1”)

Coverage Area: 20.3 sq.ft.

Created using Luxion Technology (luxion.com)

Acoustic (NRC) Value:

Installation Method	NRC:
Direct Application	0.60
2″ Air Cavity	0.75
2″ Cavity (filled with mineral wool)	0.90
4″ Air Cavity	0.90
4″ Cavity (filled with mineral wool)	0.96
