CoreBoo™ PET PERF PANEL

The CoreBOO PET Perf Panels are 1/2” panels that are made by applying perforated CoreBOO veneer onto a recycled PET acoustic substrate.  Available in 3 standard perforation patterns, these panels boost sound absorption when compared to the Solid CoreBOO panels.  Note: custom perforation patterns (diameters and spacing) are available, as are different thicknesses and colors of the PET acoustic substrate.

Features

  • Large-format wall panel
  • Available in multiple colorways to accentuate design.
  • Standard and simple installation methods
  • Class A fire-rating (ASTM E84-17)

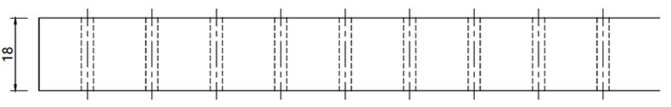

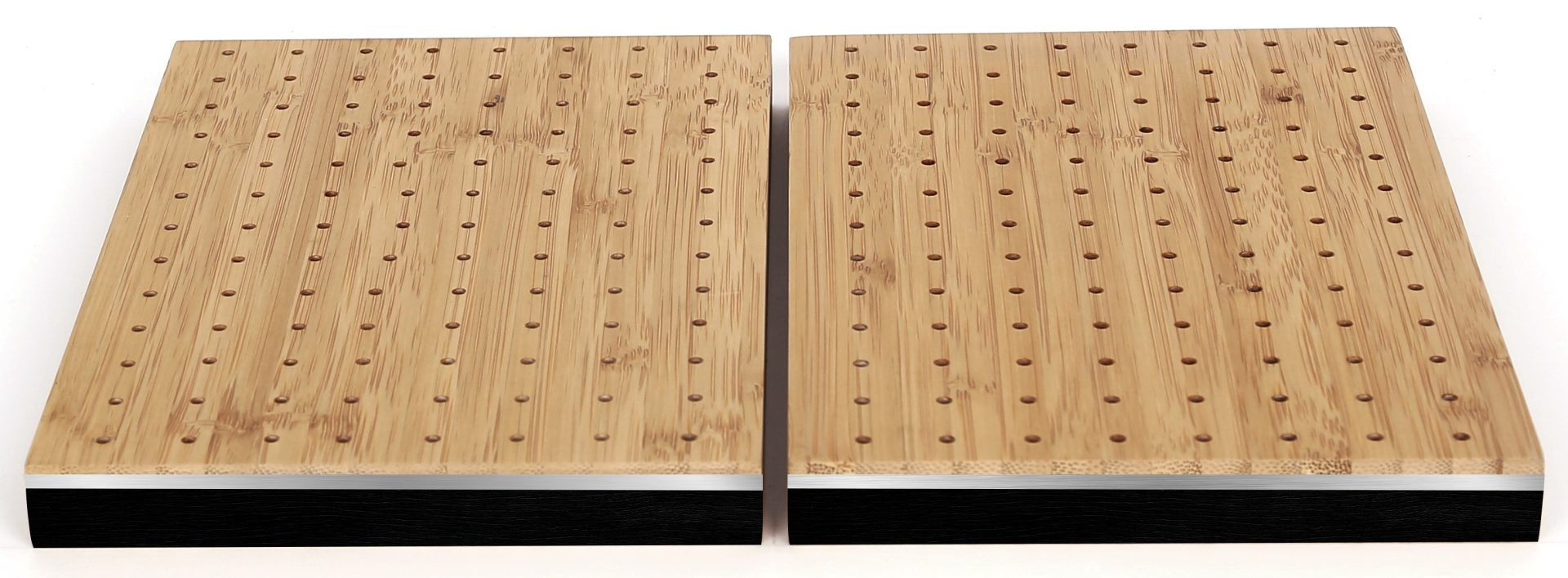

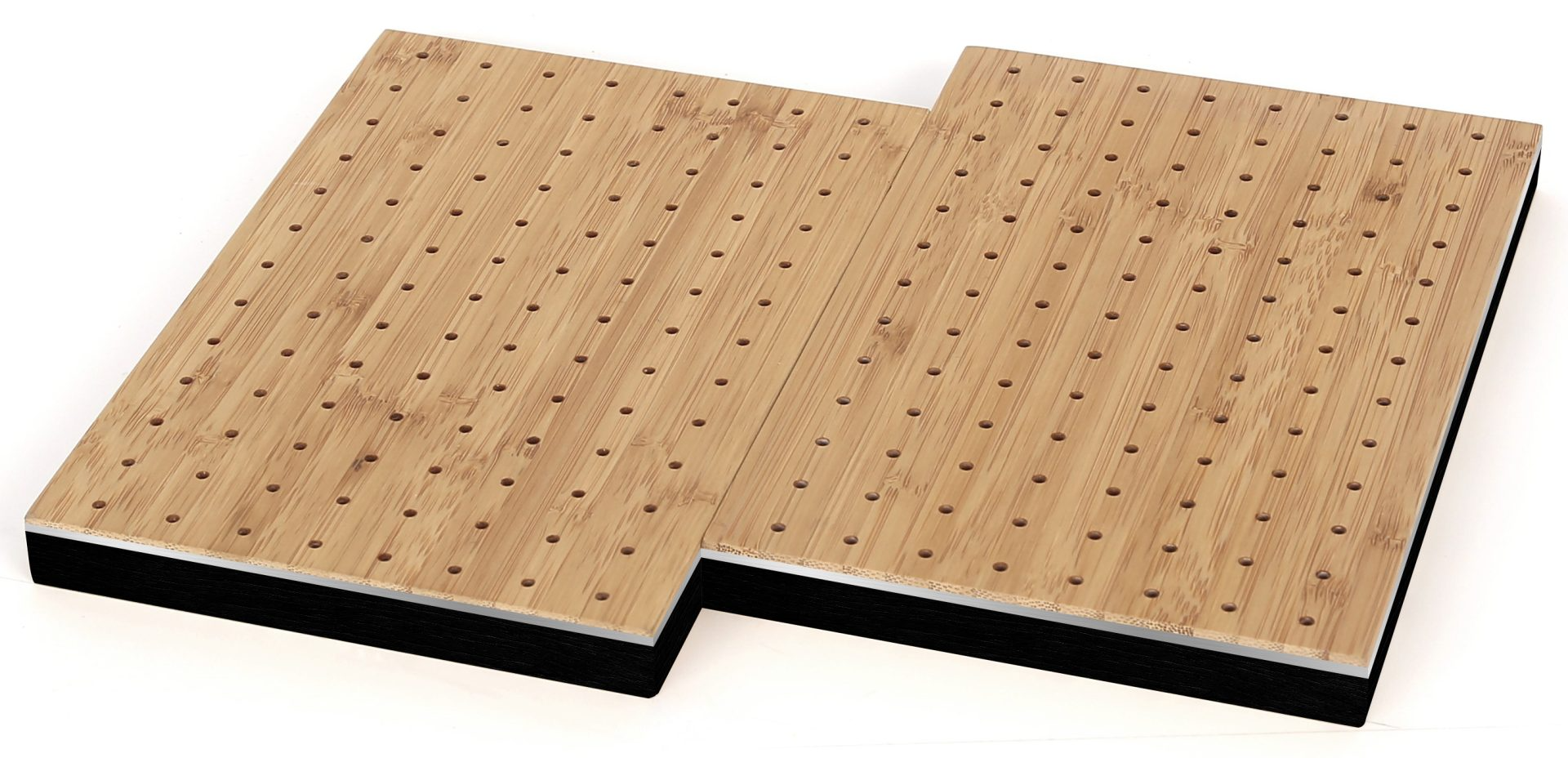

Micro Panel

Perforation Diameter 3mm (~ 1/8”)
Performation Separation 16mm (~2/3”)
Plank Width 600mm (~ 24″)
Plank Length 600, 1200 or 2400mm
(~ 24″, 48″ or 96″)

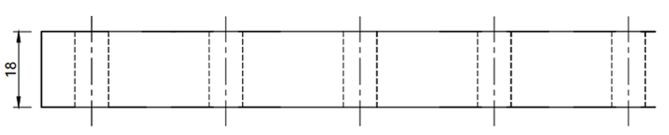

Plank Thickness 18mm (~ 3/4″)

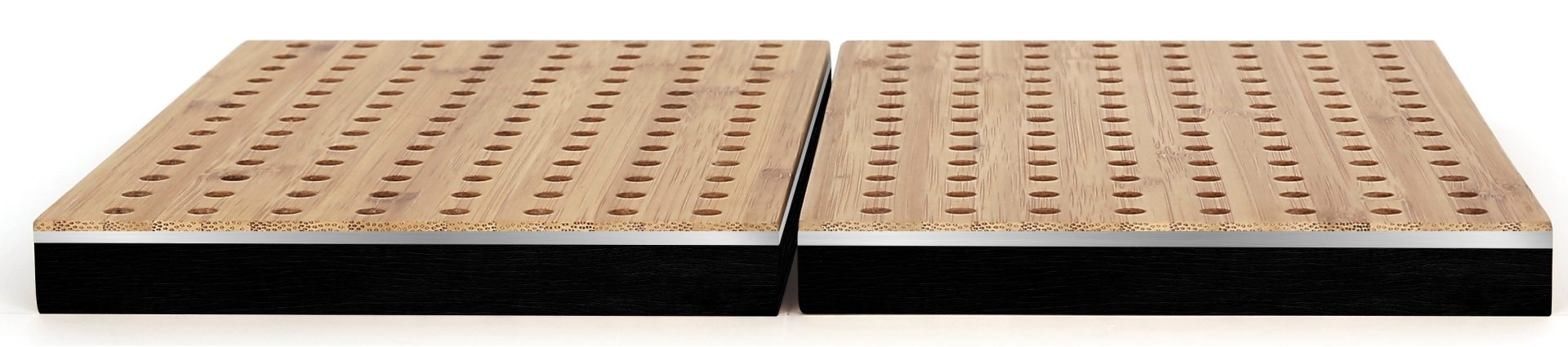

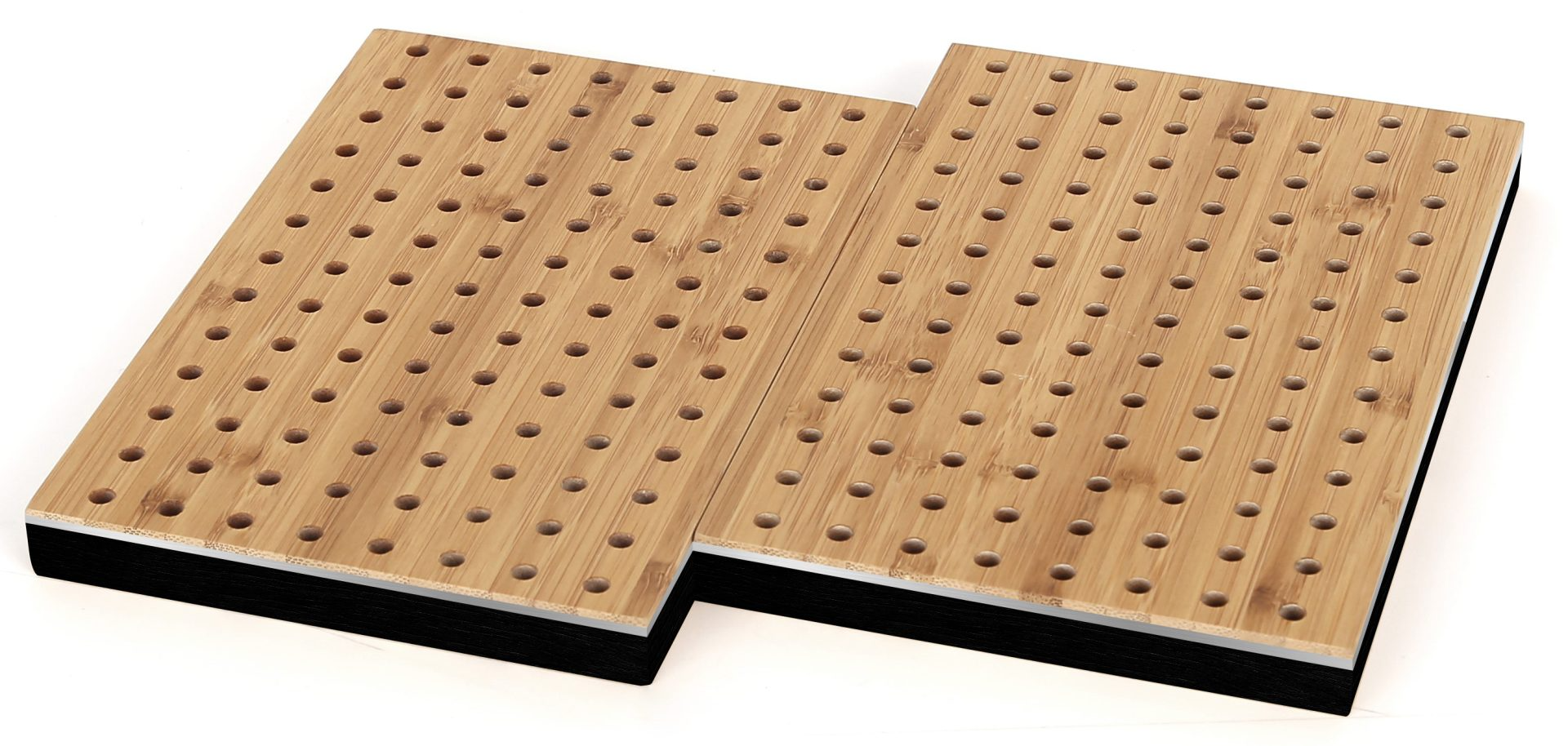

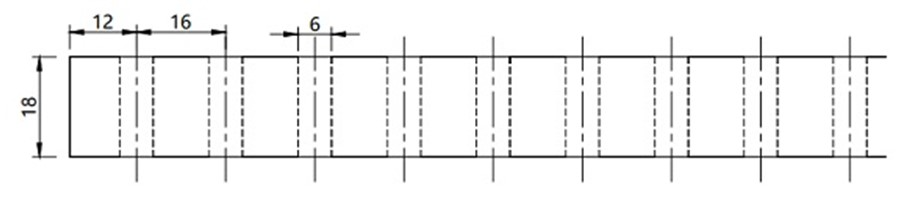

Classic Panel

Perforation Diameter 6mm (~ 1/4”)
Performation Separation 16mm (~2/3”)
Plank Width 600mm (~ 24″)
Plank Length 600, 1200 or 2400mm
(~ 24″, 48″ or 96″)
Plank Thickness 18mm (~ 3/4″)

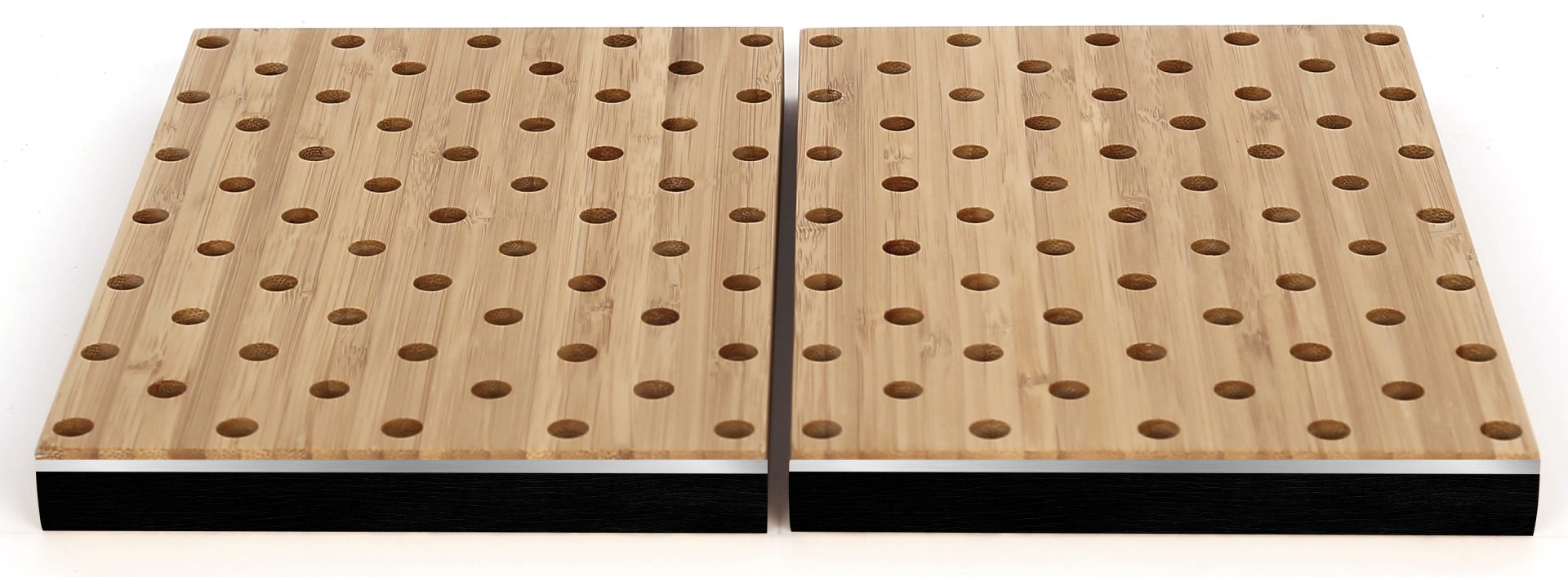

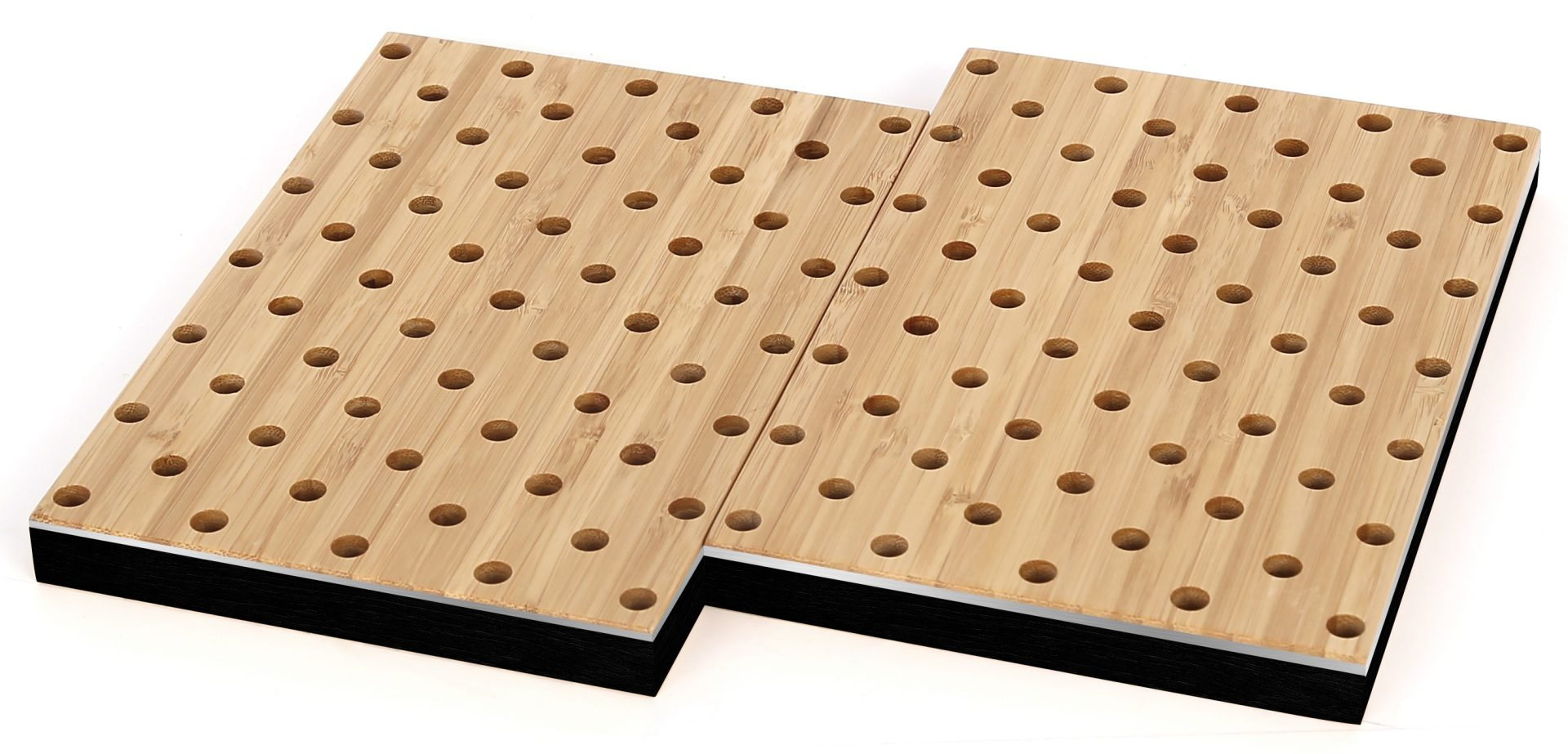

Offset Panel

Perforation Diameter 8mm (~ 1/3”)
Performation Separation 32mm (~1-1/3”)
Plank Width 600mm (~ 24″)
Plank Length 600, 1200 or 2400mm
(~ 24″, 48″ or 96″)
Plank Thickness 18mm (~ 3/4″)

UV Lacquer Options (for interior applications only)

Rubbed Oil Options (can be used inside or outside)

Click image to view product brochure.

Ready to Order?

Lead time and shipping costs vary by product.  If you are ready to place an order, CLICK HERE to get a quote for your CoreBOO Panels project.

Customizations:

  • Perforated panels can be made with perforation diameters down to 0.5mm.
  • Substrate thickness and color can also be customized based on the application and need.
  • “FSC” bamboo material is available.

Installation:

  • Direct Application
  • Hanging

Environmental Compliance

  • Made from sustainably harvested, rapidly renewable bamboo (5-year harvesting cycle)
  • E0 (low-VOC) and NAUF (No Added Urea Formaldehyde) adhesives and coatings
  • CARB 2 and LEED-Compliant (FSC material available)

Composition

  • Bamboo – 100% bamboo on recycled aluminum sheeting
  • Substrate – Recycled PET

Finish

  • UV lacquers (5 standard colors)
  • Matte Oil (7 standard colors)

Product Documentation

  • Product Data Sheet
  • CSI Specification
  • Installation Instructions
