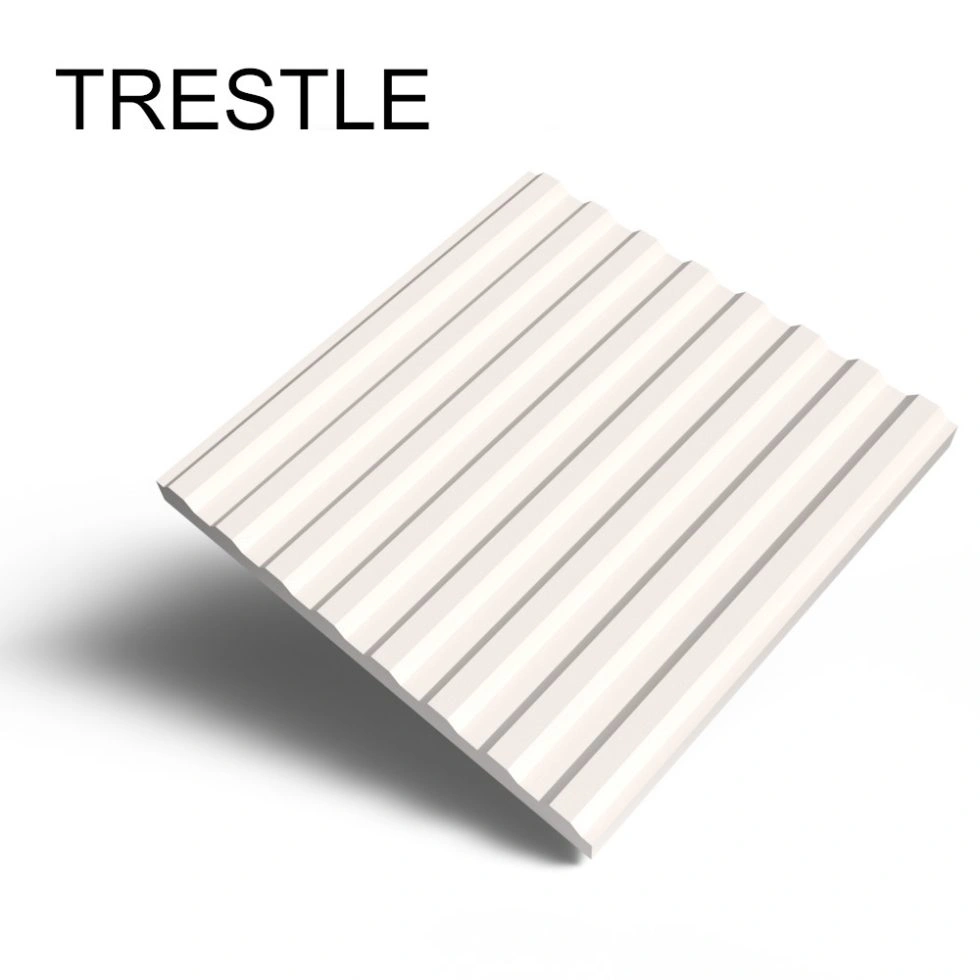

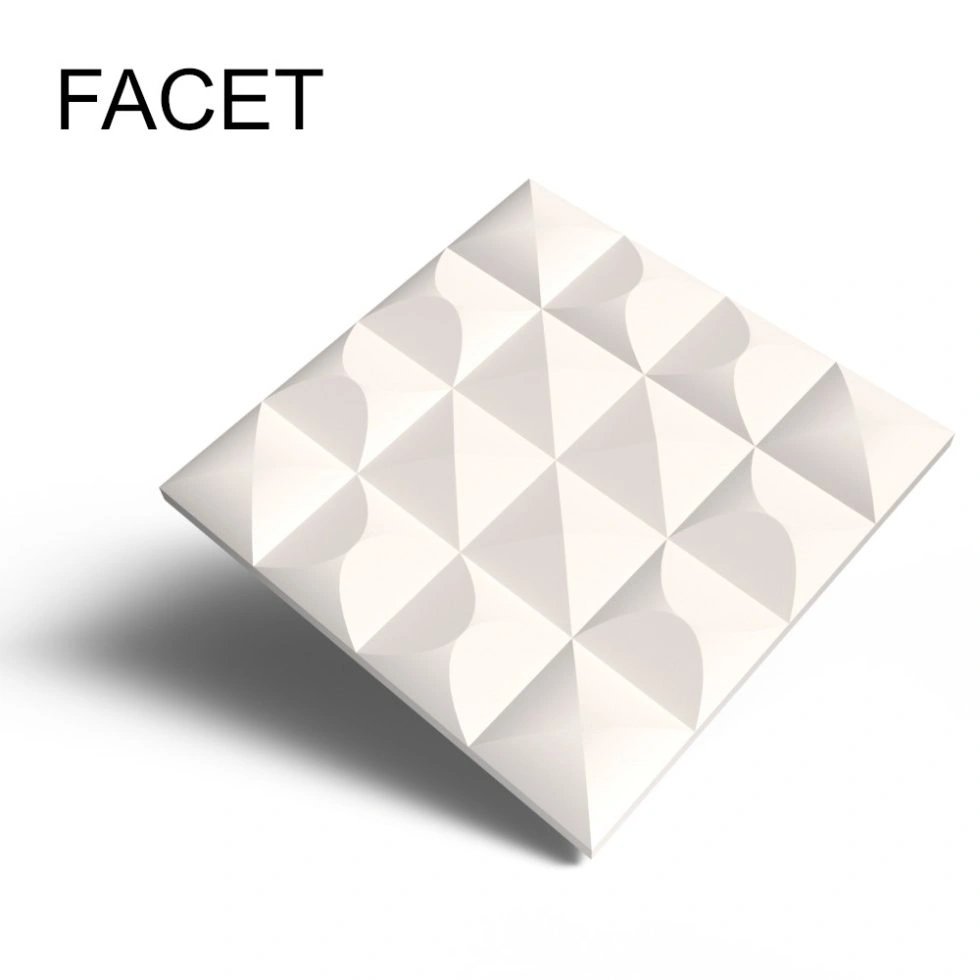

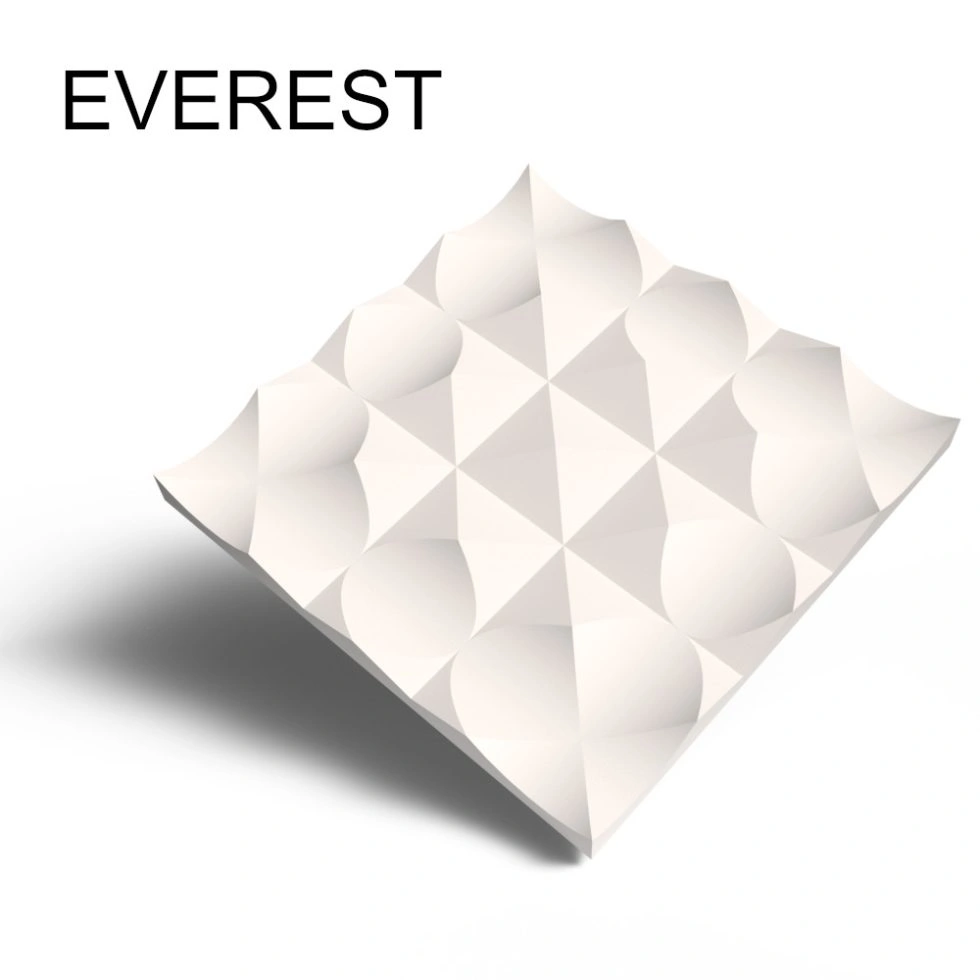

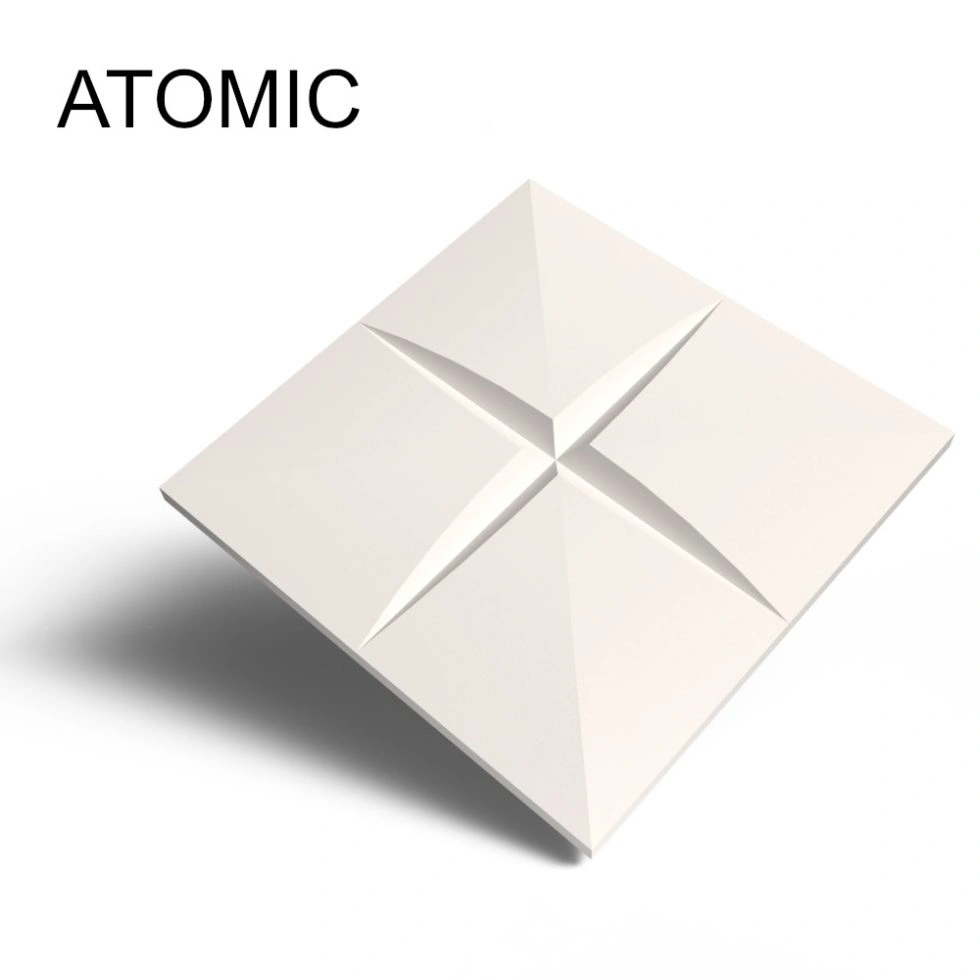

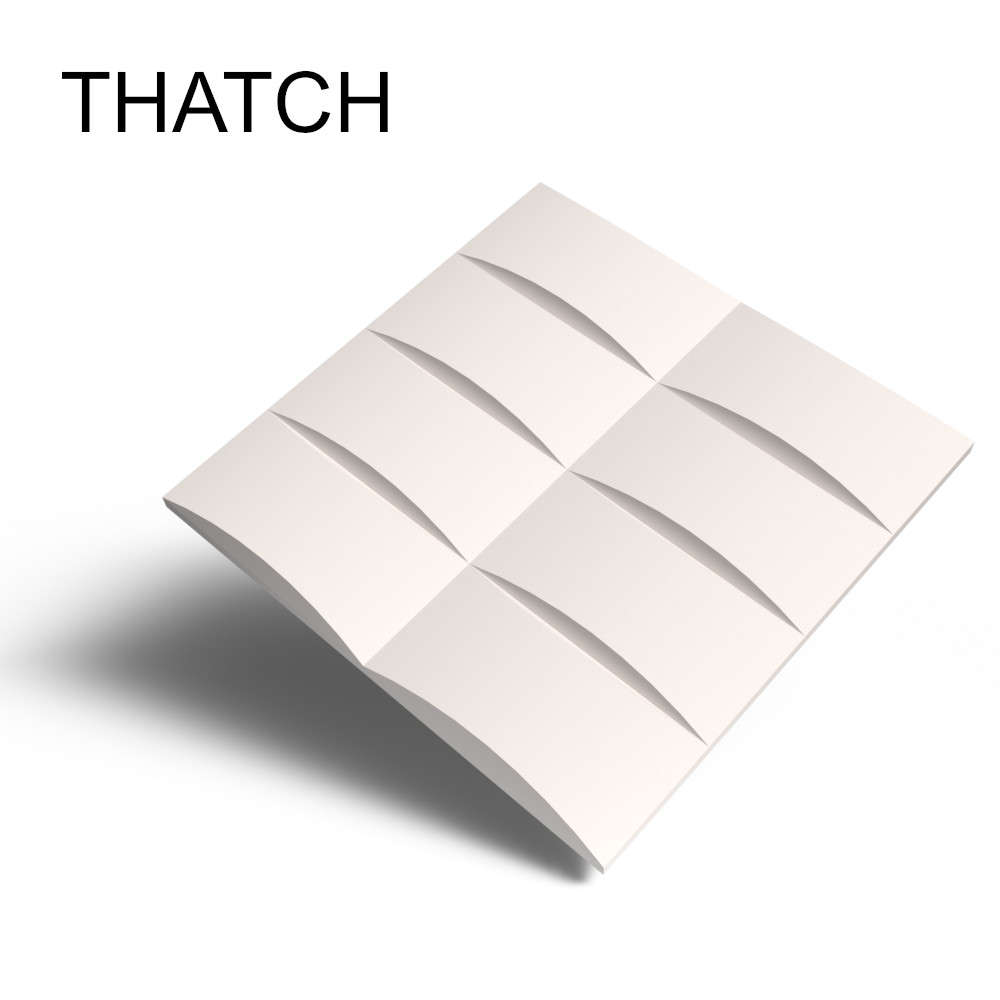

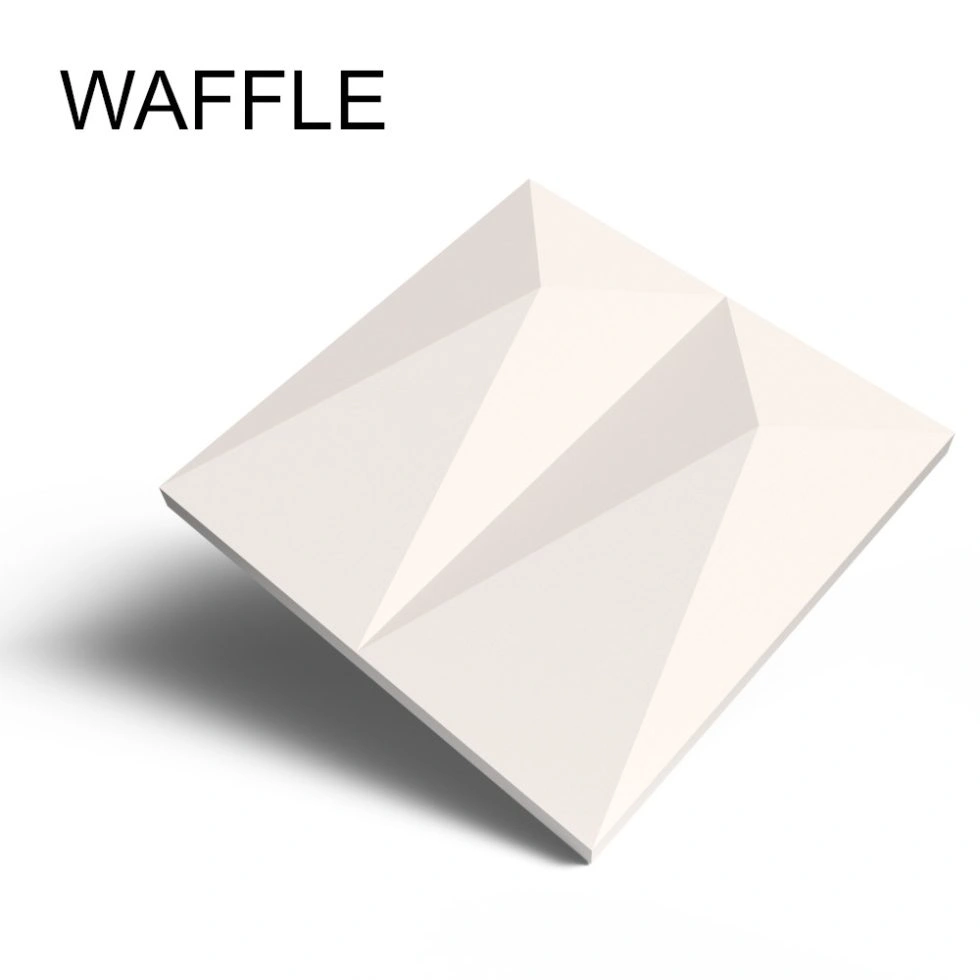

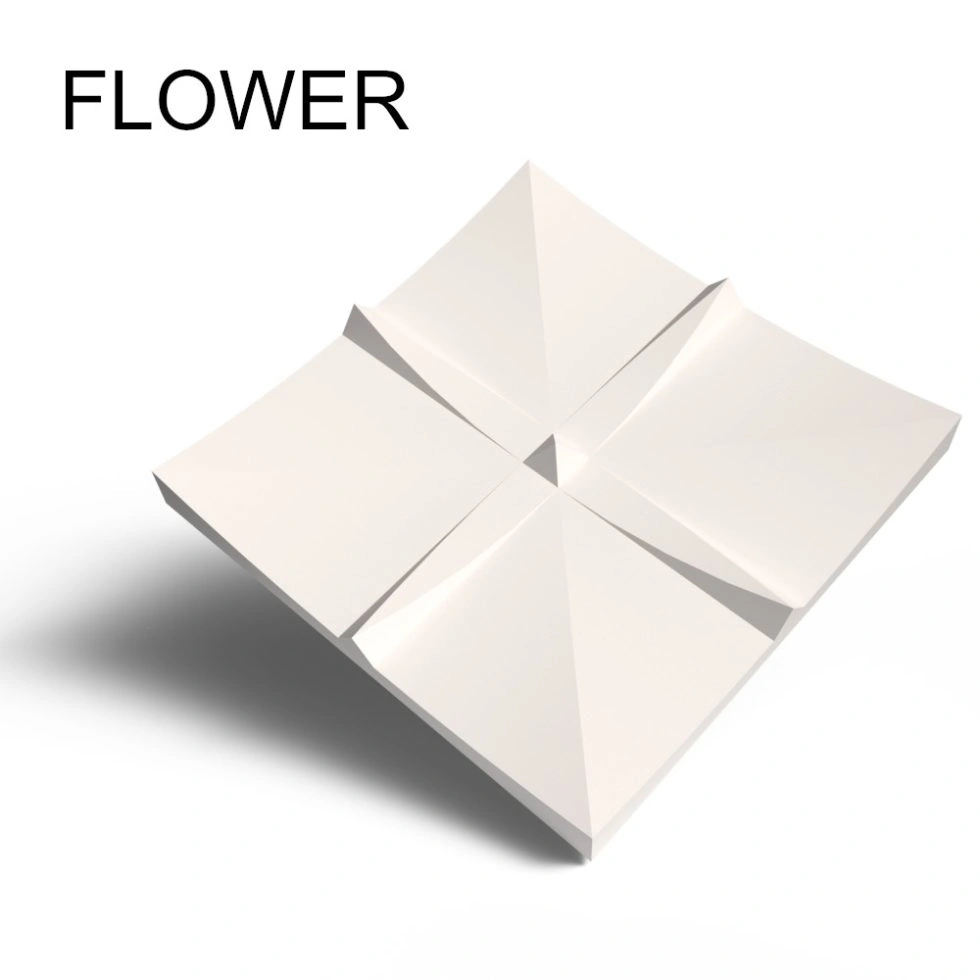

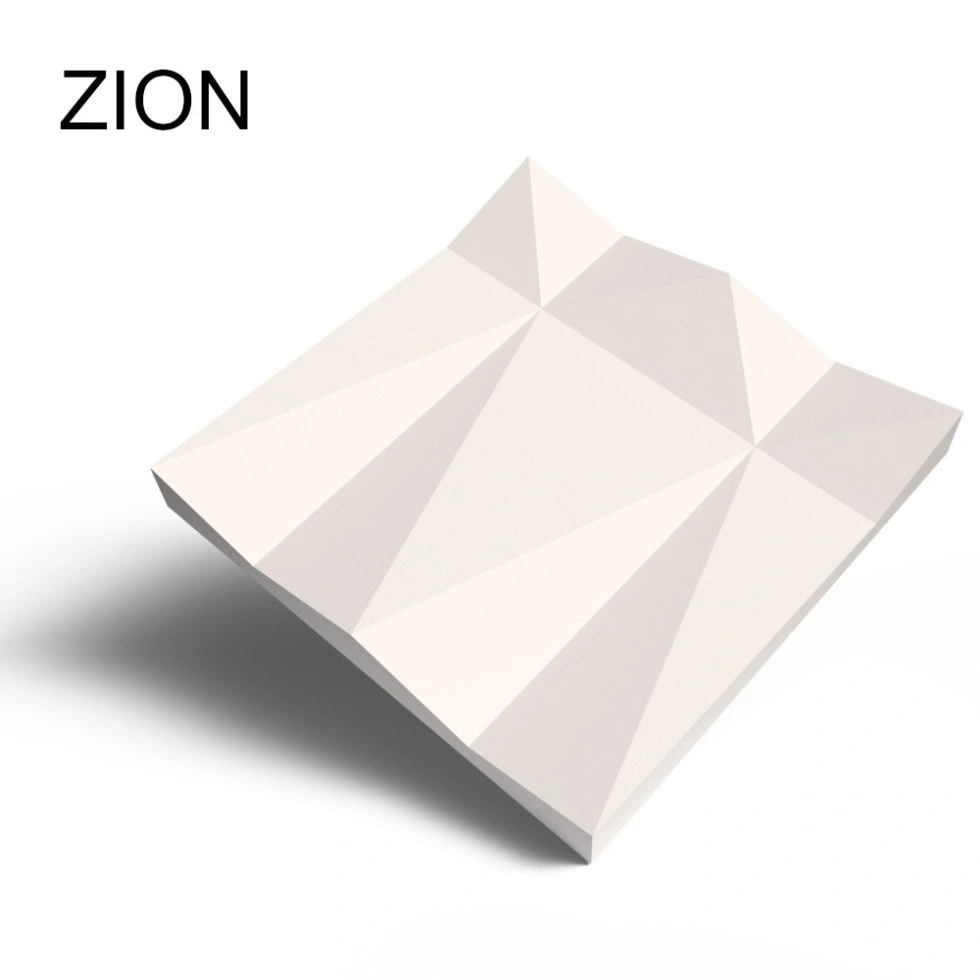

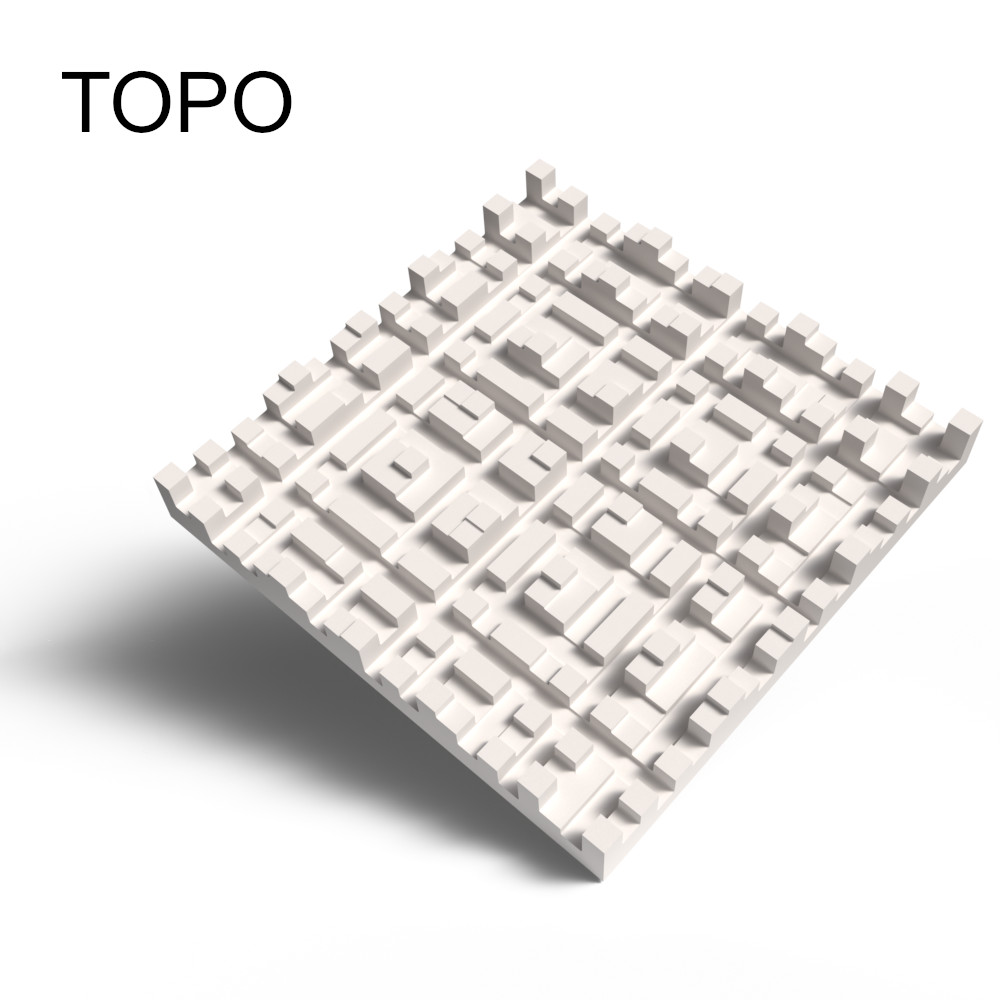

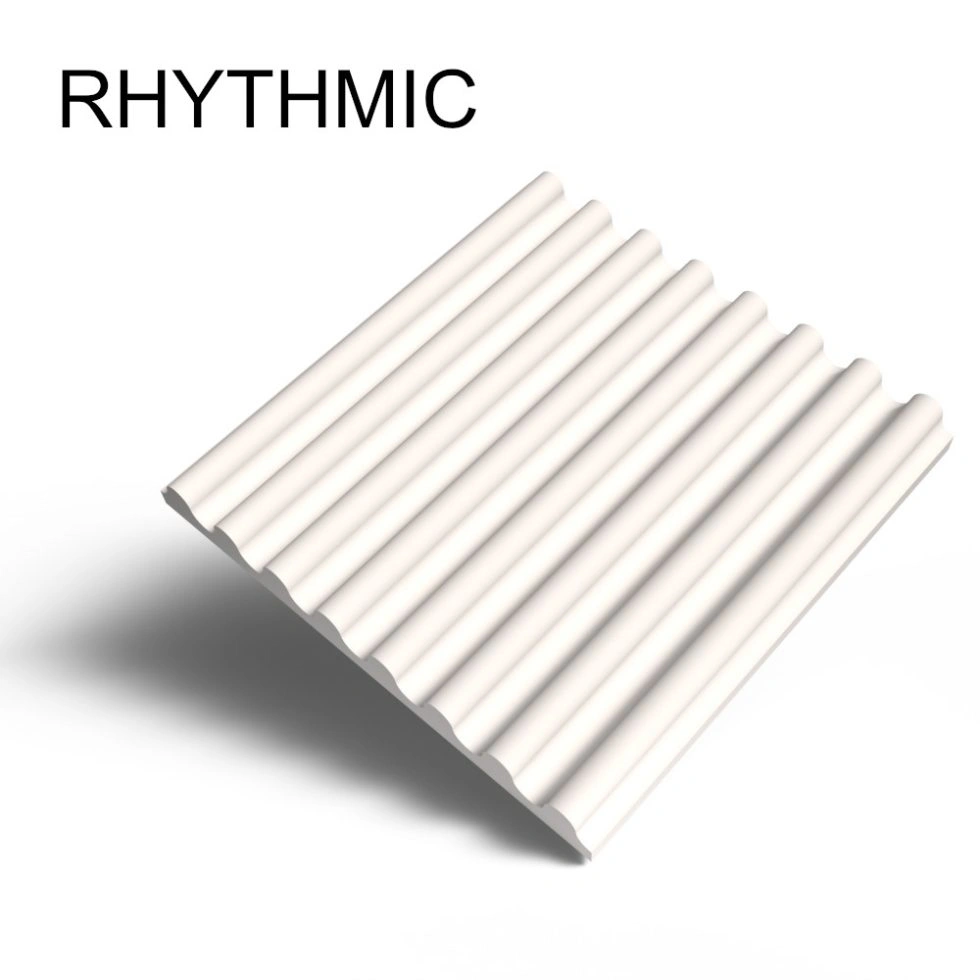

Our Acoustifoam™ TILES bring our highly customizable and acoustic absorptive material really into the realm of “design’. Available in 10 standard patterns, these large format tiles come in a natural white color, though can further be color customized through our Pantone Custom Coloring (PCC). Touting an NRC rating of 0.70 (compare to 0.25 for 7mm felt), Acoustifoam Tiles provide truly decorative sound absorption.

Size

23” x 23” (or 23-1/2” x 23-1/3” for ‘drop-in’ applications)

Thickness

1-1/2” to 3” (depends on the specific design; inquire for specific design)

NRC

0.70

Installation

Adhesive (construction or ‘spray’) or Drop-in (for ceiling grid applications).

Fire-Resistance

Class “A” (ASTM E84)

Sound Absorption Coefficient [Sabins / sqft ]

Finish Thickness (in) 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz SAA NRC Mounting Type
White 1.00 0.11 0.16 0.53 0.85 0.99 1.04 0.63 0.65 A
1.50 0.17 0.28 0.84 0.99 1.03 1.04 0.78 0.80 A
2.00 0.23 0.48 1.08 1.19 1.16 1.11 0.97 1.00 A
3.00 0.45 0.87 1.26 1.07 1.06 1.10 1.05 1.05 A
4.00 0.58 1.19 1.45 1.38 1.29 1.24 1.34 1.35 A
Finish White
Thickness (in) 1.50 2.00 3.00 4.00 5.00
125 Hz 0.17 0.23 0.45 0.45 0.58
250 Hz 0.28 0.48 0.87 0.87 1.19
500 Hz 0.84 1.08 1.26 1.26 1.45
1000 Hz 0.99 1.19 1.07 1.07 1.38
2000 Hz 1.03 1.16 1.06 1.06 1.29
4000 Hz 1.04 1.11 1.10 1.10 1.24
SAA 0.78 0.97 1.05 1.05 1.34
NRC 0.80 1.00 1.05 1.05 1.35
Mounting Type A A A A A



Click image to view Acoustifoam TILES pages on brochure.

Standard Colors

We offer 10 standard colors to choose from.

Ready to Order?

Lead time and shipping costs vary by product.  If you are ready to place an order, CLICK HERE to get a quote for your Acoustifoam TILES project.
