Our CoreBOO Perf Panel line revolves around the idea of resonant sound absorption, which involves trapping air to modify certain frequencies of sound. Different hole sizes and their densities provide selective absorption of different frequencies, all which can be varied to a greater or lesser extent based on installation method and related ‘air’ space allocated behind our panels.

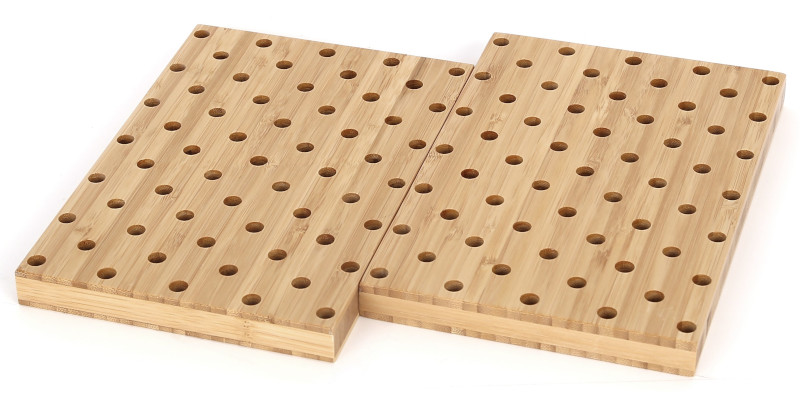

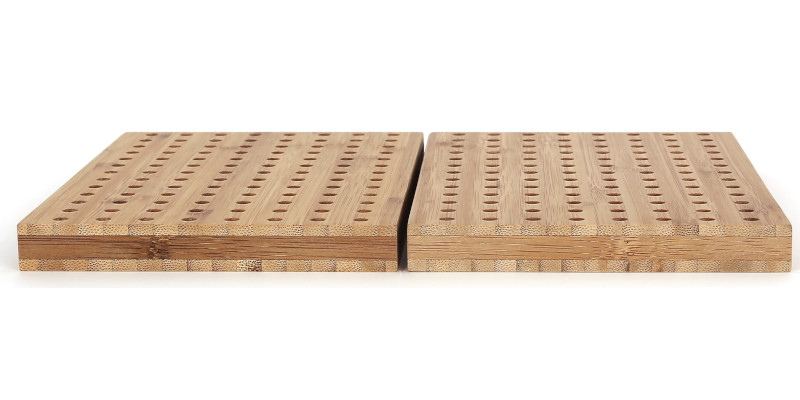

The CoreBOO ‘Solid’ Perf’ Panels are solid ¾” thick panels that are available in 3 options, each with a different perforation size, and are designed with symmetry and specific frequency absorption in mind. Note: custom perforation diameters and layouts available upon request.

Features

  • Large-format wall panel
  • Available in multiple colorways to accentuate design.
  • Standard and simple installation methods
  • Class A fire-rating (ASTM E84-17)

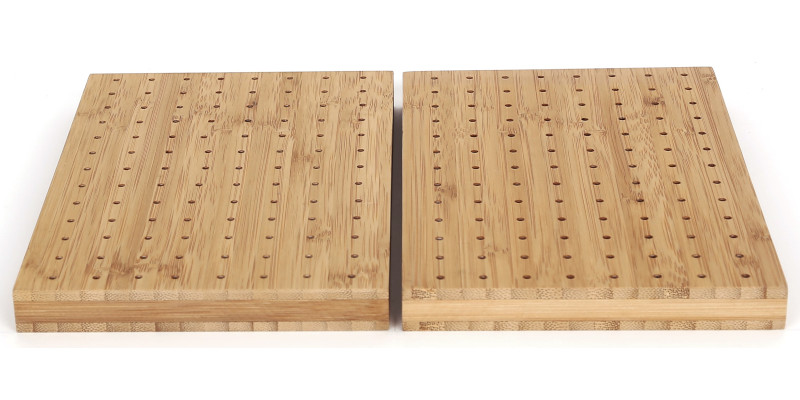

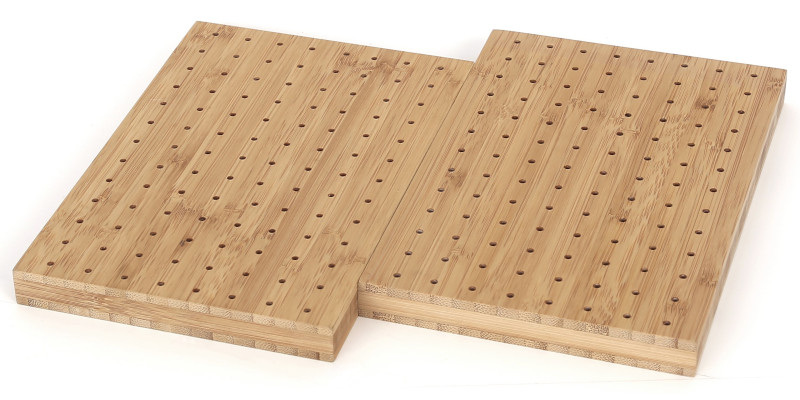

Micro Panel

Perforation Diameter 3mm (~ 1/8”)
Performation Separation 16mm (~2/3”)
Plank Width 600mm (~ 24″)
Plank Length 600, 1200 or 2400mm
(~ 24″, 48″ or 96″)

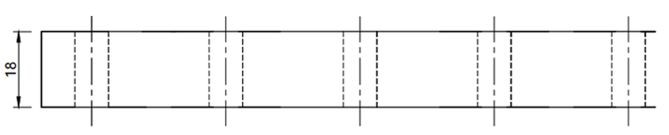

Plank Thickness 18mm (~ 3/4″)

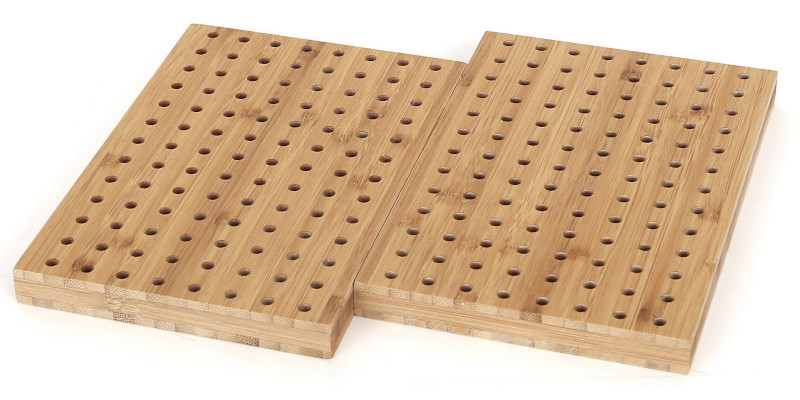

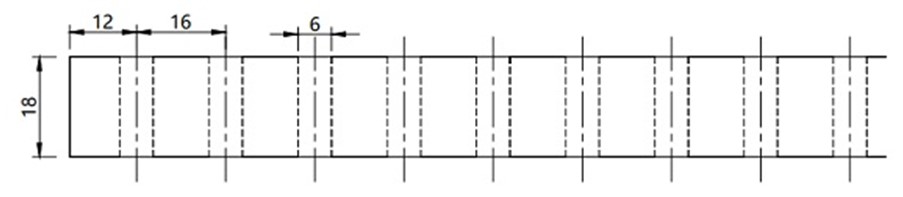

Classic Panel

Perforation Diameter 6mm (~ 1/4”)
Performation Separation 16mm (~2/3”)
Plank Width 600mm (~ 24″)
Plank Length 600, 1200 or 2400mm
(~ 24″, 48″ or 96″)
Plank Thickness 18mm (~ 3/4″)

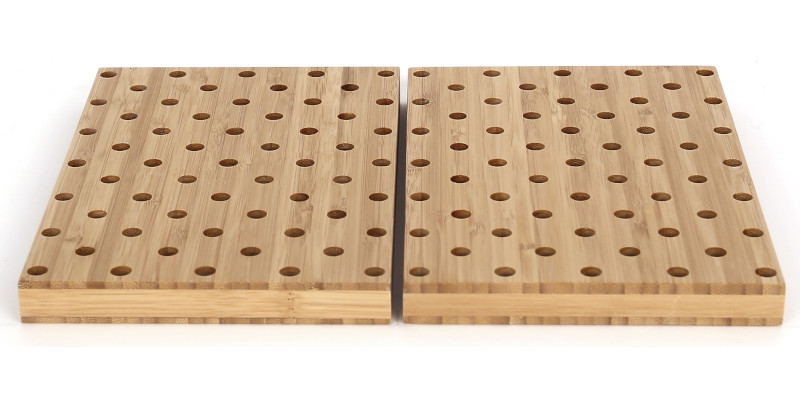

Offset Panel

Perforation Diameter 8mm (~ 1/3”)
Performation Separation 32mm (~1-1/3”)
Plank Width 600mm (~ 24″)
Plank Length 600, 1200 or 2400mm
(~ 24″, 48″ or 96″)
Plank Thickness 18mm (~ 3/4″)

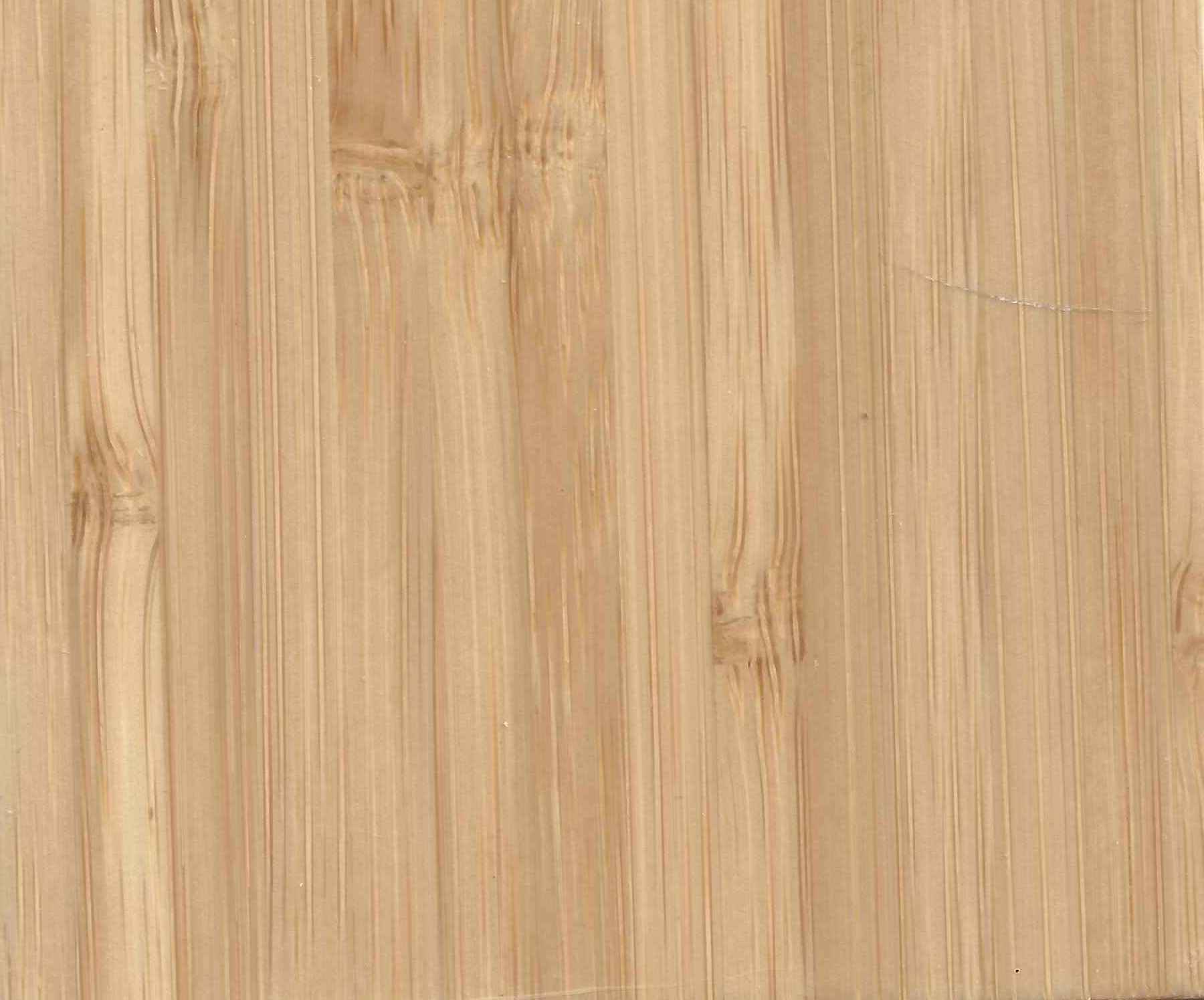

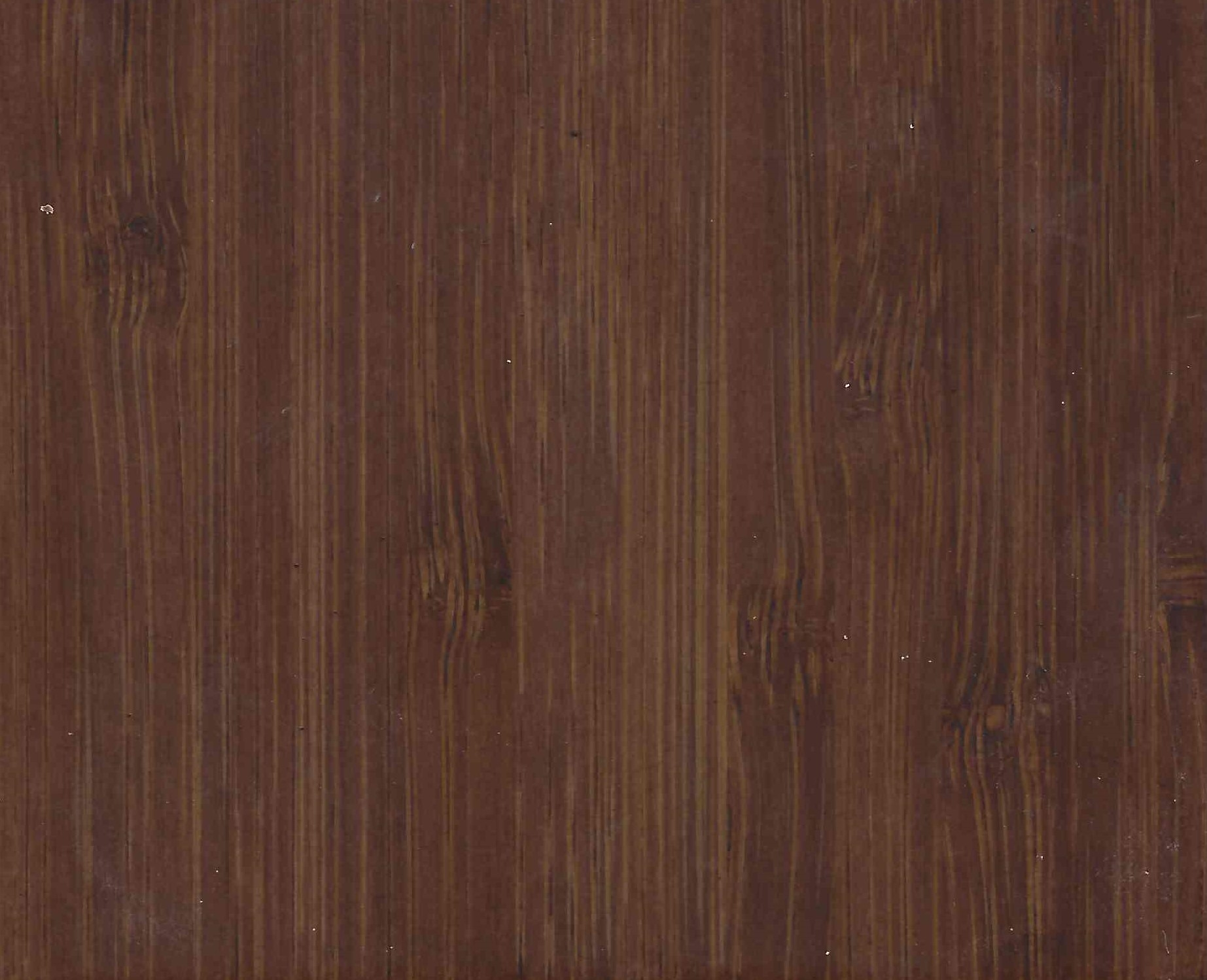

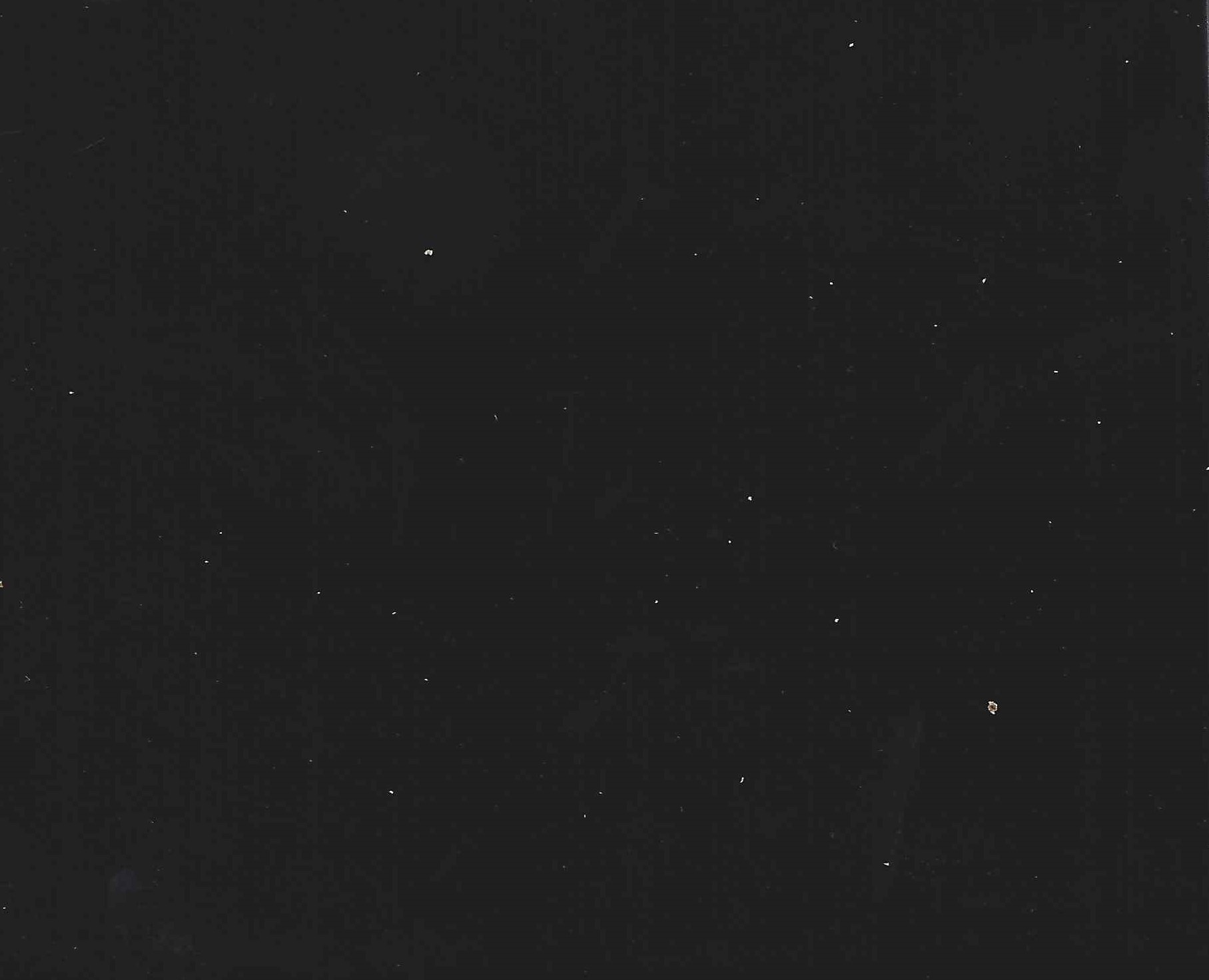

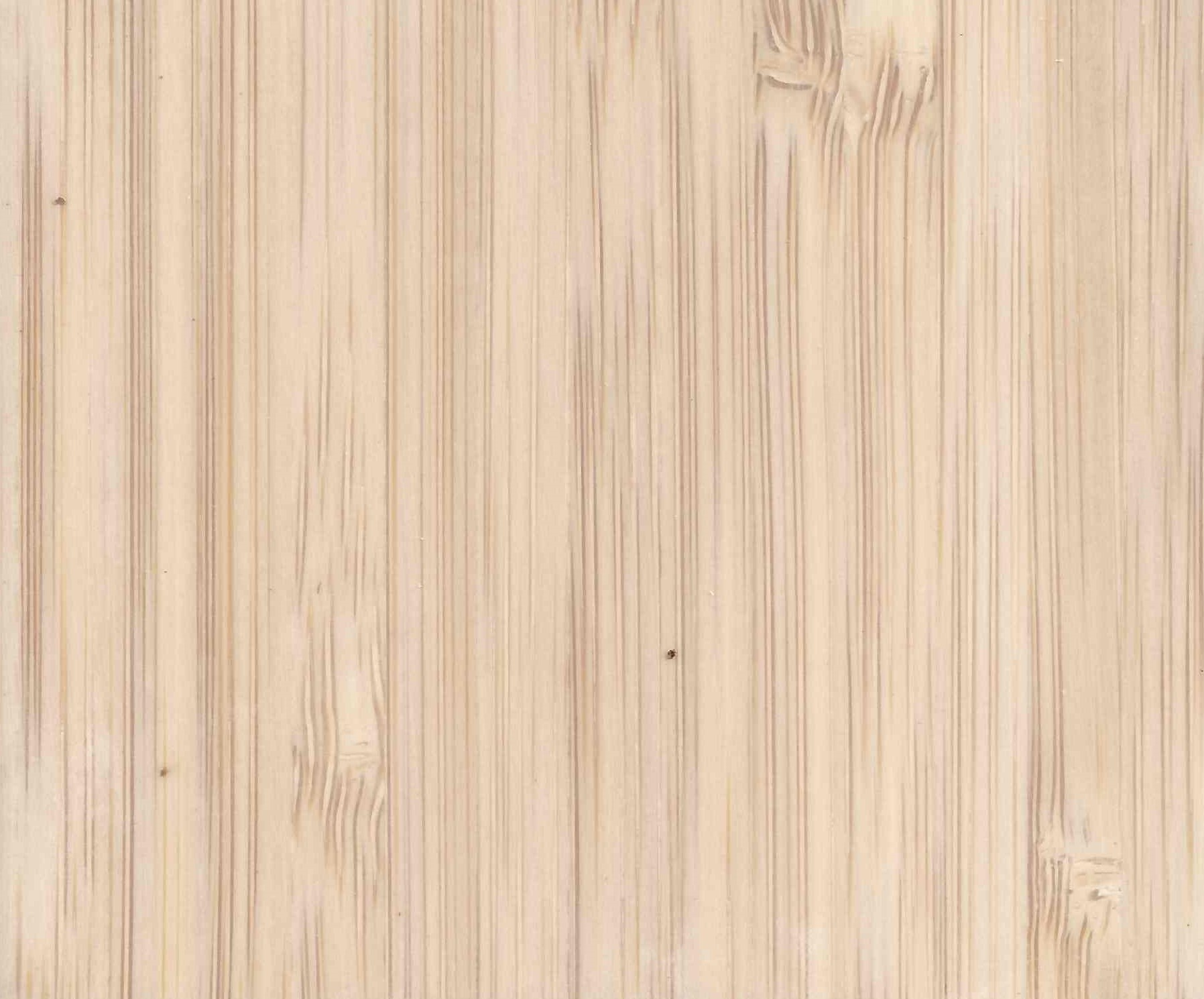

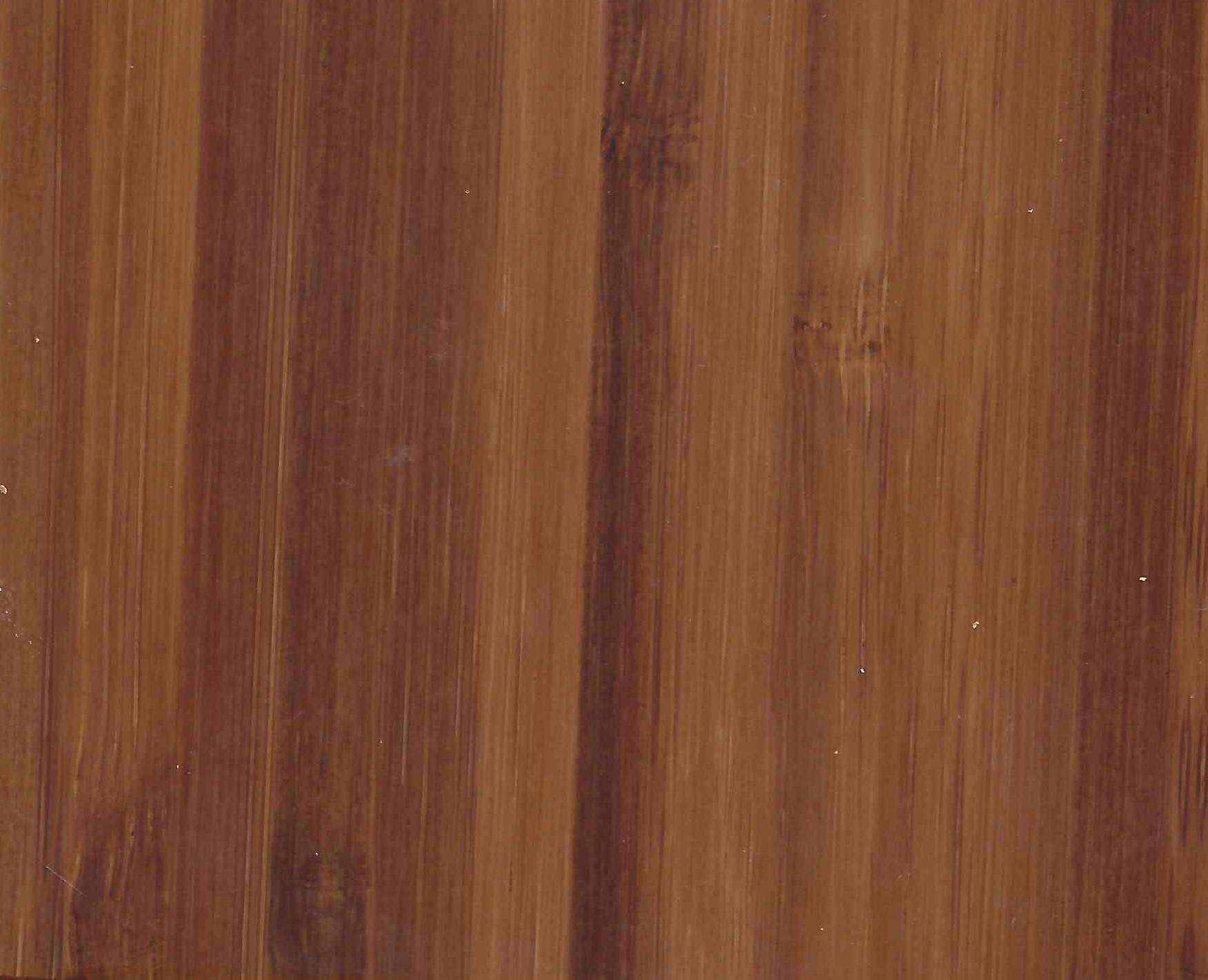

UV Lacquer Options (for interior applications only)

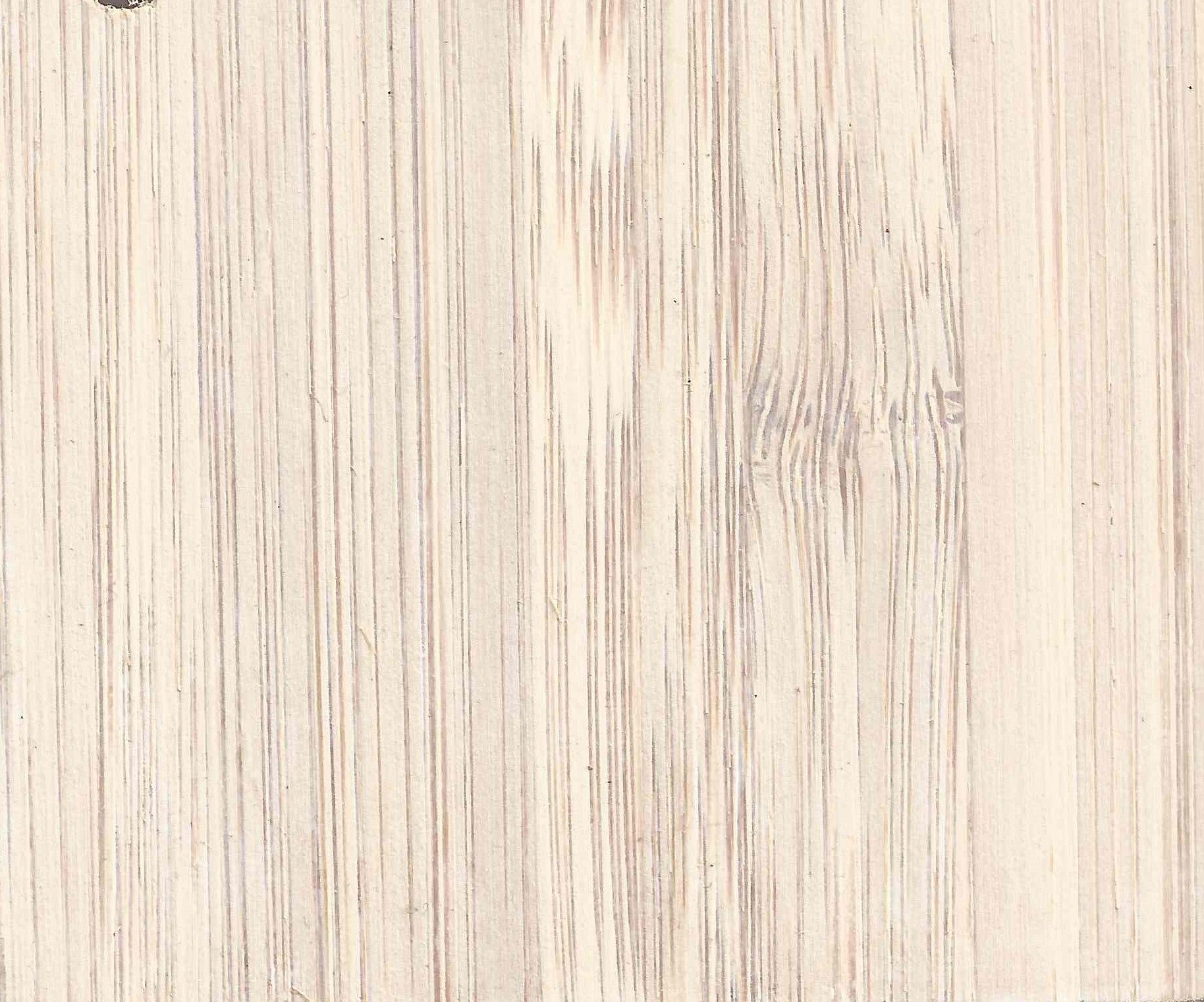

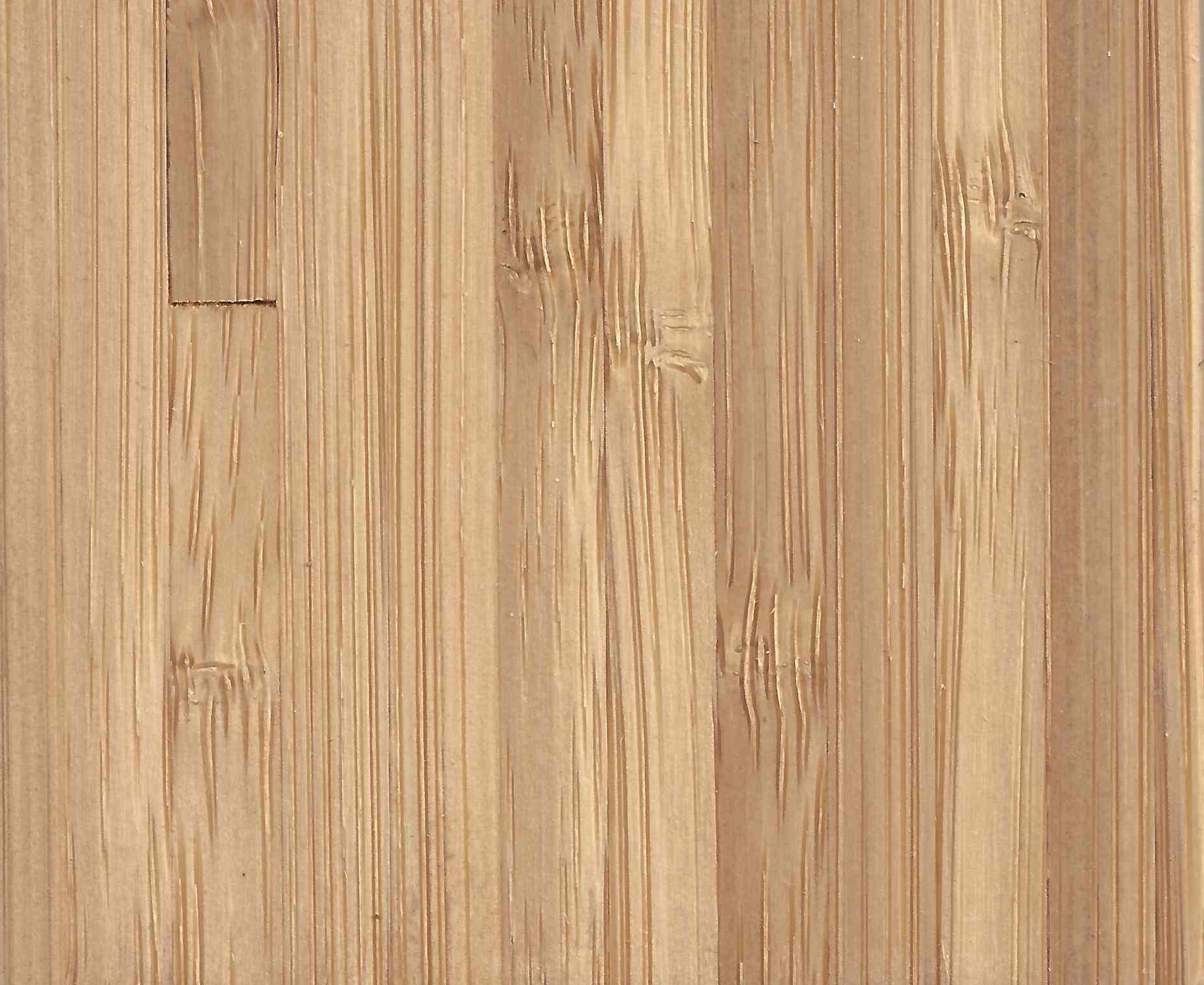

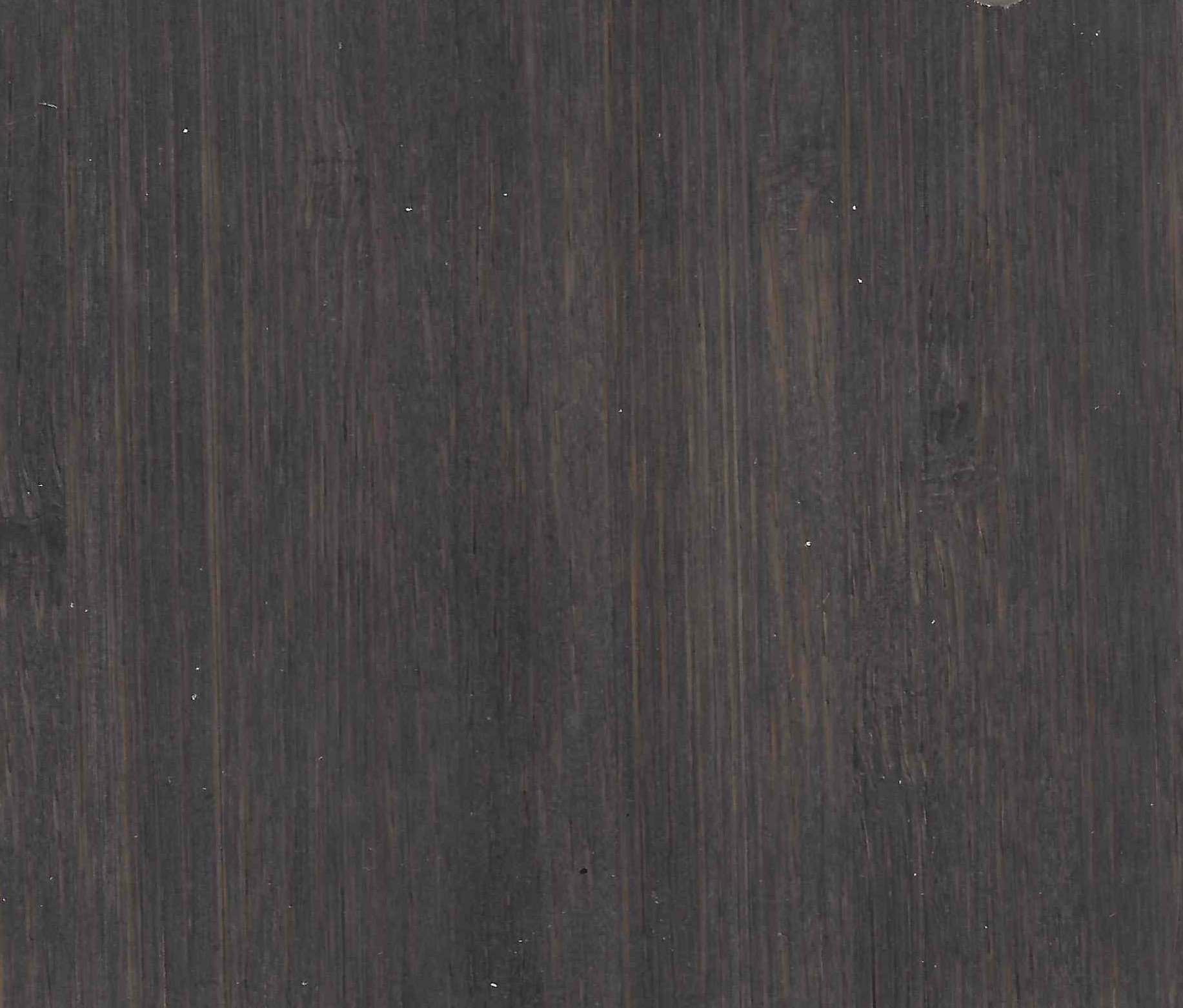

Rubbed Oil Options (can be used inside or outside)

Click image to view CoreBOO PERF Panels pages on brochure.

Ready to Order?

Lead time and shipping costs vary by product.  If you are ready to place an order, CLICK HERE to get a quote for your CoreBOO Panels project.

Customizations:

  • Perforated panels can be made with perforation diameters down to 0.5mm.  For desired perforation diameters between 0.5-3mm, the panel material will be made from MDF panels faced with bamboo veneers (on both sides).  The SOLID bamboo is too hard/dense to effectively perforate below 3mm.  double-sided bamboo veneer faced MDF.

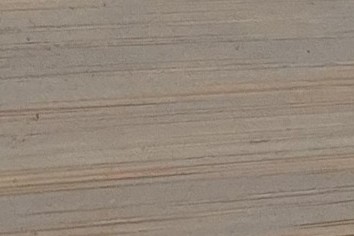

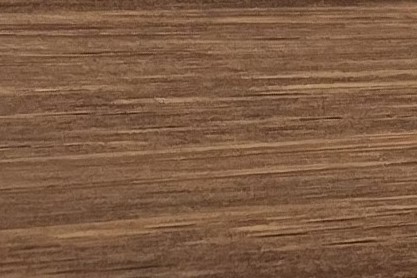

  • Color (topical stains available – see: Color Option Chart). “FSC” material available

Installation:

  • Direct Application
  • Hanging

Environmental Compliance

  • Made from sustainably harvested, rapidly renewable bamboo (5-year harvesting cycle)
  • E0 (low-VOC) and NAUF (No Added Urea Formaldehyde) adhesives and coatings
  • CARB 2 and LEED-Compliant (FSC material available)

Composition

  • Bamboo – 100% bamboo
  • Substrate(s) –
    • FELT – Recycled PET
    • SOLID/Flexi – Multiply plywood
    • OPEN – Recycled component aluminum
    • AIR MESH – 100% bamboo

Finish

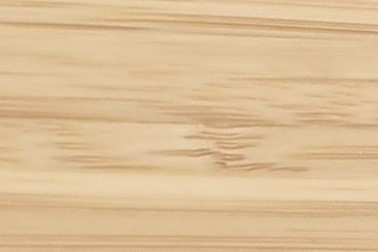

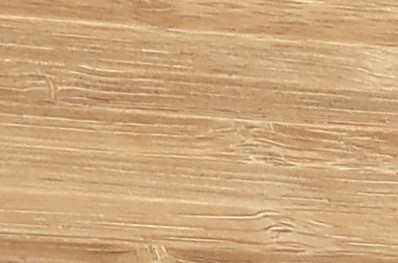

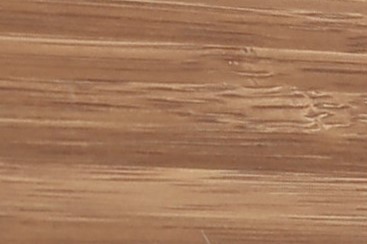

  • Standard product (Dark/Medium/Light) – UV cured water-based urethan
  • “Stains” – Waco Exterior Oil

Product Documentation

  • Product Data Sheet
  • CSI Specification
  • Installation Instructions
