PLEAT Panel

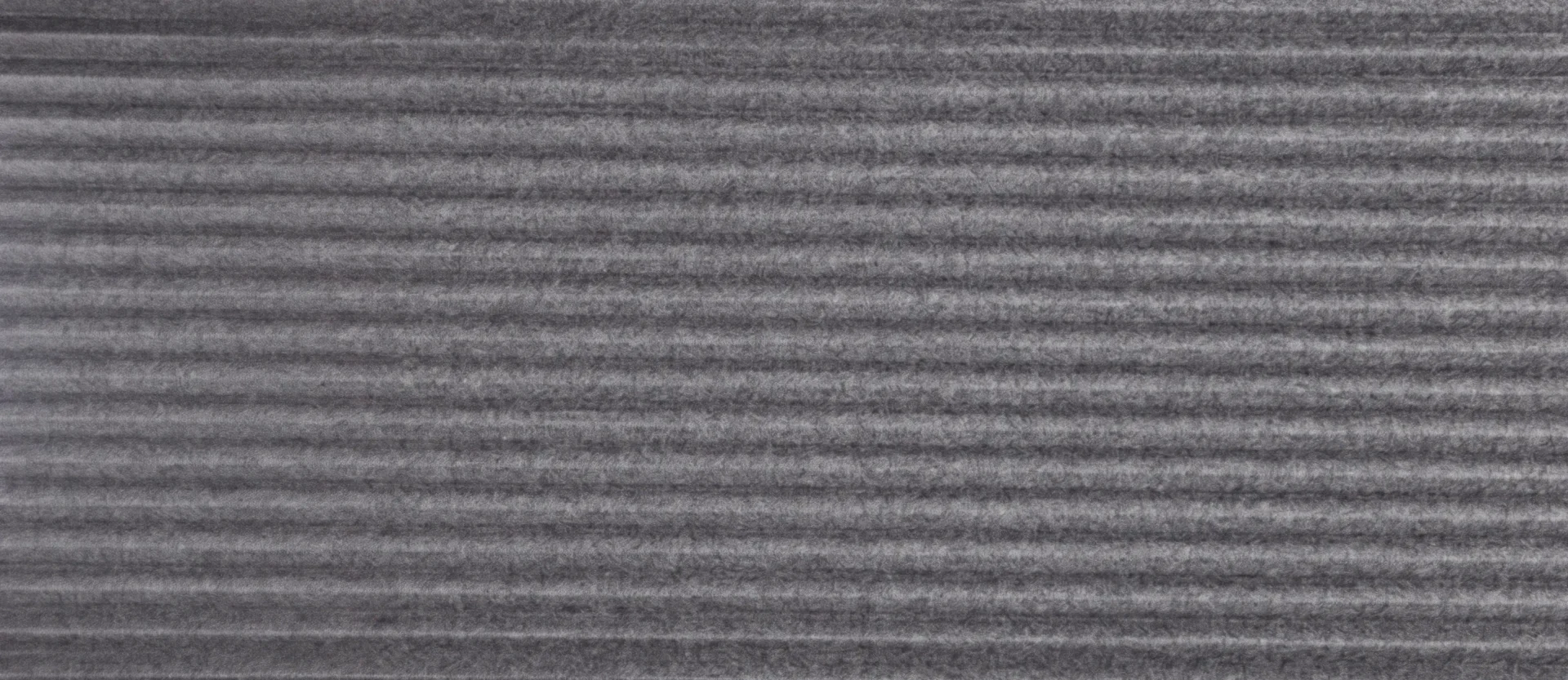

The WAVE PLEAT panels carry a design of an ‘accordion pleat’, where evenly spaced folds within the panel create a zigzag pattern.

Features

  • Made from recycled PET (100% recyclable)
  • High NRC values (standard FLAT Panel NRC = 0.80)
  • Available in Class ‘A” for Fire (ASTM E84)
  • VOC compliance
  • Comes in 16 standard colorways (custom options available)
  • Customizable lengths (up to 110”)

Panel Details

Coverage Area / Panel:

26.6 sq.ft.

Acoustic (NRC) Value:

Installation Method NRC:
Direct Application 0.60
2″ Air Cavity 0.75
2″ Cavity (filled with mineral wool) 0.90
4″ Air Cavity 0.90
4″ Cavity (filled with mineral wool) 0.96

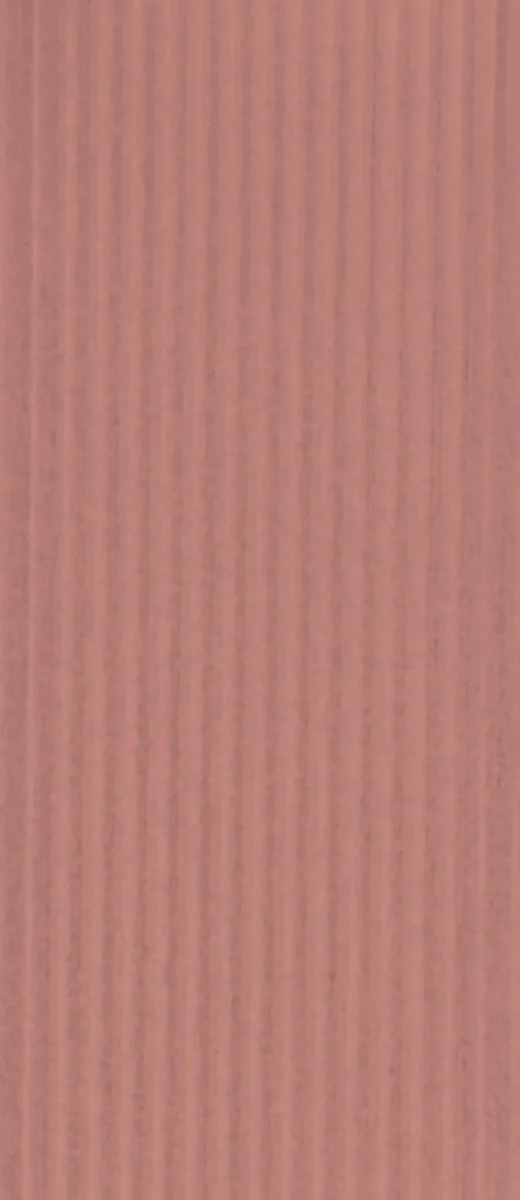

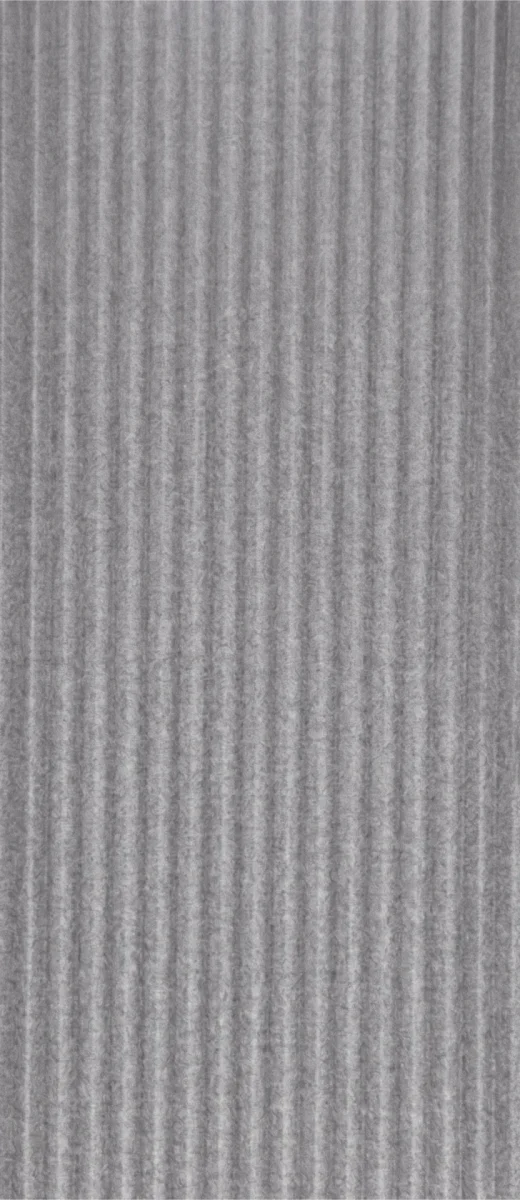

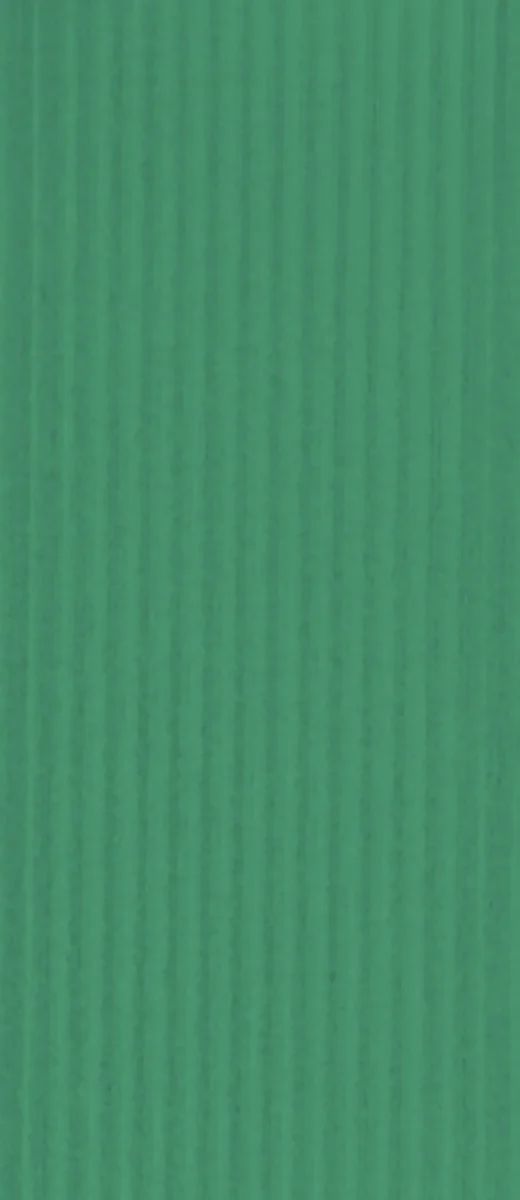

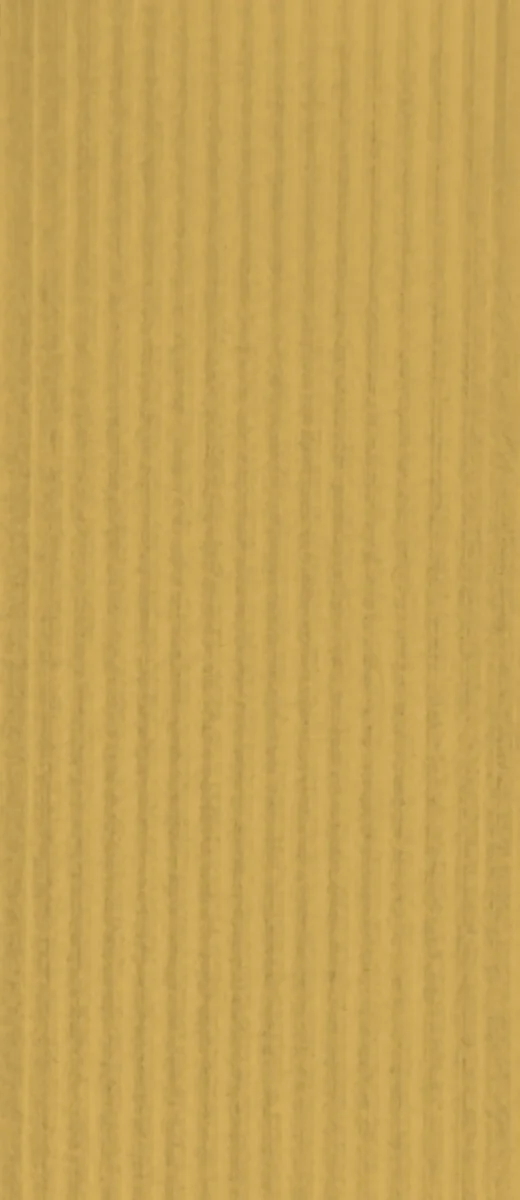

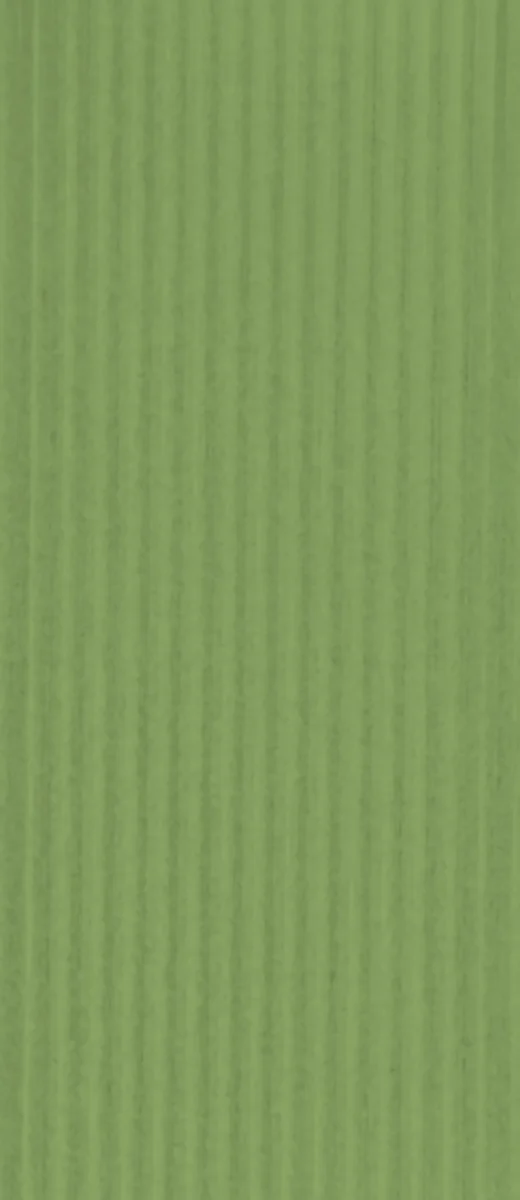

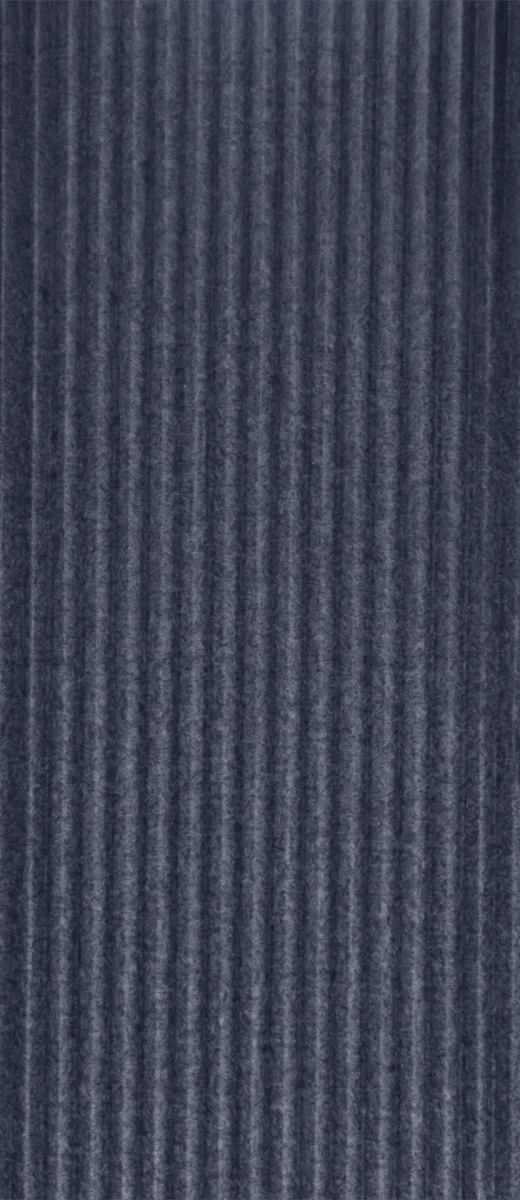

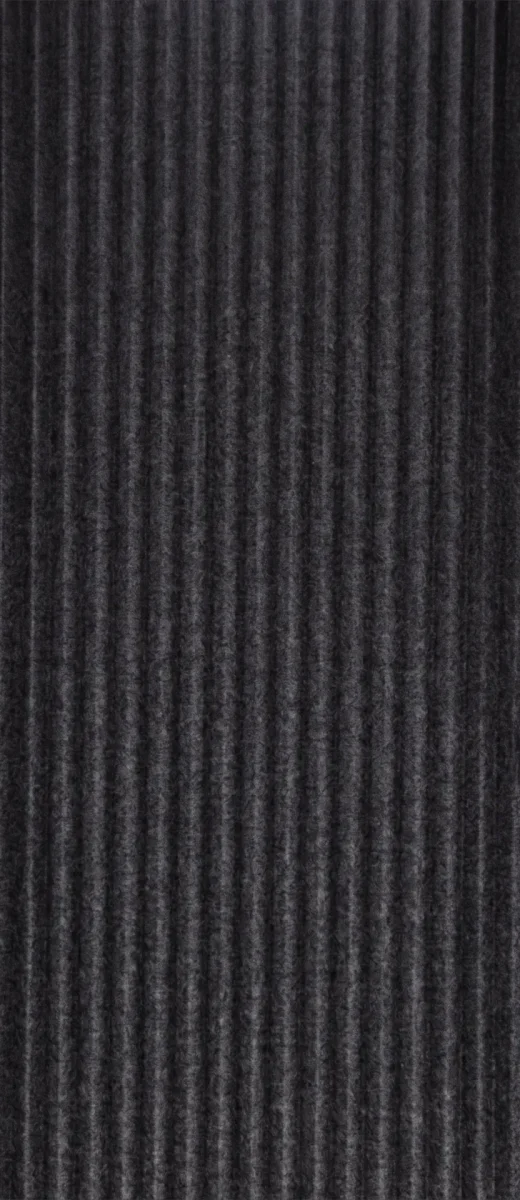

Standard Colors

We offer 11 standard colors to choose from.

Click image to view WAVE – SINE Panels pages on brochure.

Purchase Samples

Ready to Order?

Lead time and shipping costs vary by product.  If you are ready to place an order, CLICK HERE to get a quote for your WAVE Panels project.

Installation:

  • Adhesive application
  • Nail application
  • Offset (w/ spacing)

Environmental Compliance

  • Made from mostly European post-industrial recycled PET
  • CARB 2 and LEED-Compliant

Environmental Compliance

  • Made from mostly European post-industrial recycled PET
  • CARB 2 and LEED-Compliant

Composition

  • 100% PET (Felt)
