Acoustifoam™ CEILING PANELS
Highly absorptive acoustic panels designed to be mounted into an existing drop ceiling assembly or applied directly onto the ceiling surface. Provides an instant transformation of room acoustics, with the flexibility of matching or contrasting aesthetics – available in natural white or ‘PCC’ (Pantone Custom Colored).
Features
- Class “A” for fire (without used fire-retardant additives)
- Modular sizing for easy installation
- Designed to fit standard ceiling ‘grid’ structures.
- Available in both ‘square-edged’ and ‘beveled’ ceiling panels
- Easily ‘pantone’ colored and can be printed on
Grid Flat
23-7/8 in x 23-7/8 in x 2 in
Available in Flat or Beveled Edge.
Stick-On
23 in x 23 in x 1-3/4 in
Available in Flat or Beveled Edge
Installation
Grid – mount in place
‘Stick-on’ – Construction or spray adhesive
Fire-Resistance
Class “A” (ASTM E84)
Product Documentation
Sound Absorption Coefficient [Sabins / sqft ]
| Finish | Thickness (in) | 125 Hz | 250 Hz | 500 Hz | 1000 Hz | 2000 Hz | 4000 Hz | SAA | NRC | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|
| White | 1.00 | 0.11 | 0.16 | 0.53 | 0.85 | 0.99 | 1.04 | 0.63 | 0.65 | A |
| 1.50 | 0.17 | 0.28 | 0.84 | 0.99 | 1.03 | 1.04 | 0.78 | 0.80 | A | |
| 2.00 | 0.23 | 0.48 | 1.08 | 1.19 | 1.16 | 1.11 | 0.97 | 1.00 | A | |
| 3.00 | 0.45 | 0.87 | 1.26 | 1.07 | 1.06 | 1.10 | 1.05 | 1.05 | A | |
| 4.00 | 0.58 | 1.19 | 1.45 | 1.38 | 1.29 | 1.24 | 1.34 | 1.35 | A |
| Finish | White | ||||
| Thickness (in) | 1.50 | 2.00 | 3.00 | 4.00 | 5.00 |
| 125 Hz | 0.17 | 0.23 | 0.45 | 0.45 | 0.58 |
| 250 Hz | 0.28 | 0.48 | 0.87 | 0.87 | 1.19 |
| 500 Hz | 0.84 | 1.08 | 1.26 | 1.26 | 1.45 |
| 1000 Hz | 0.99 | 1.19 | 1.07 | 1.07 | 1.38 |
| 2000 Hz | 1.03 | 1.16 | 1.06 | 1.06 | 1.29 |
| 4000 Hz | 1.04 | 1.11 | 1.10 | 1.10 | 1.24 |
| SAA | 0.78 | 0.97 | 1.05 | 1.05 | 1.34 |
| NRC | 0.80 | 1.00 | 1.05 | 1.05 | 1.35 |
| Mounting Type | A | A | A | A | A |
Click image to view product brochure.
Standard Colors
We offer 10 standard colors to choose from.
Ready to Order?
Lead time and shipping costs vary by product. If you are ready to place an order, CLICK HERE to get a quote for your Acoustifoam CEILING PANELS project.

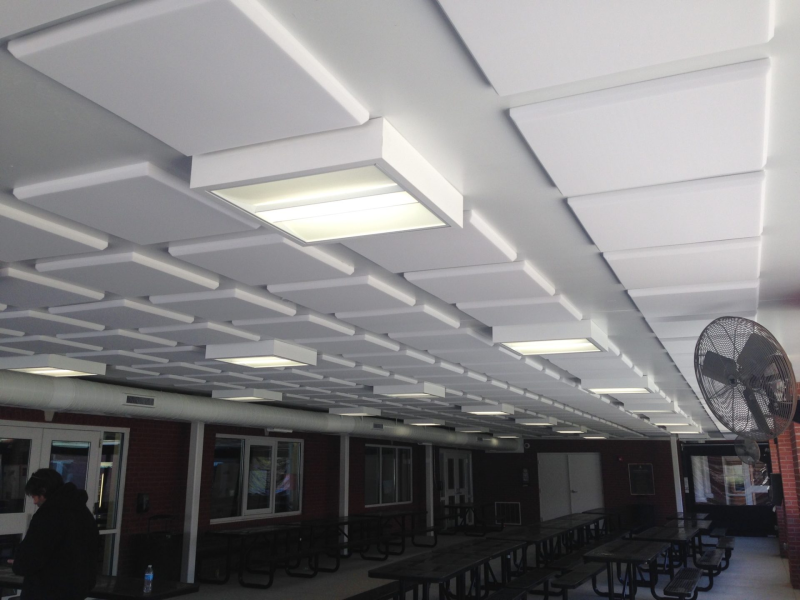

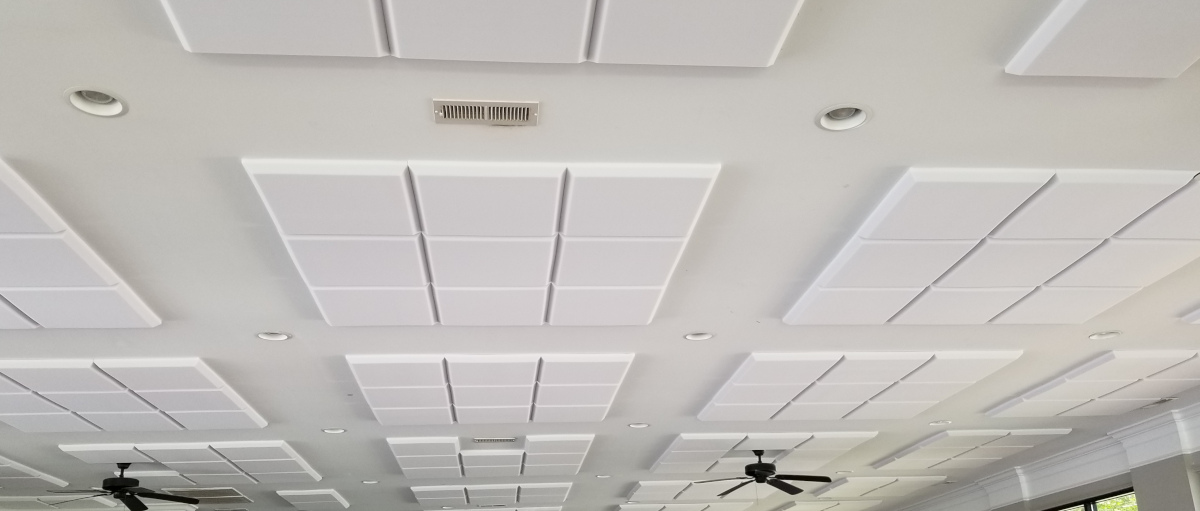

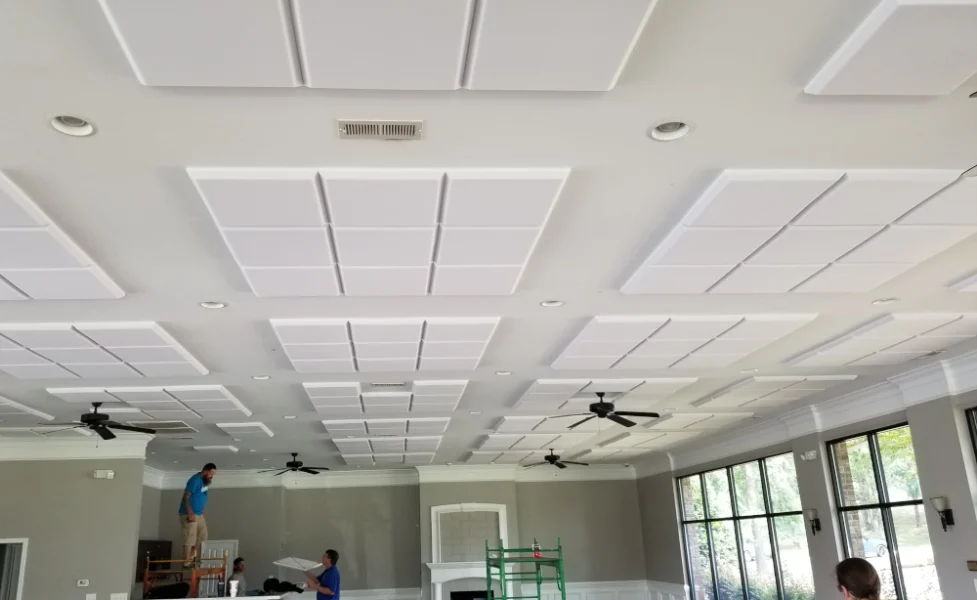

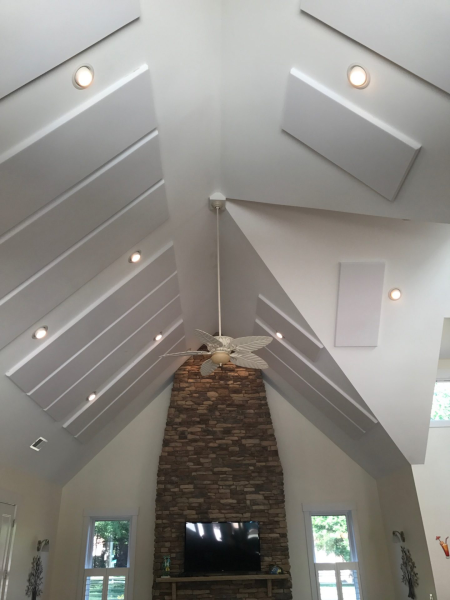

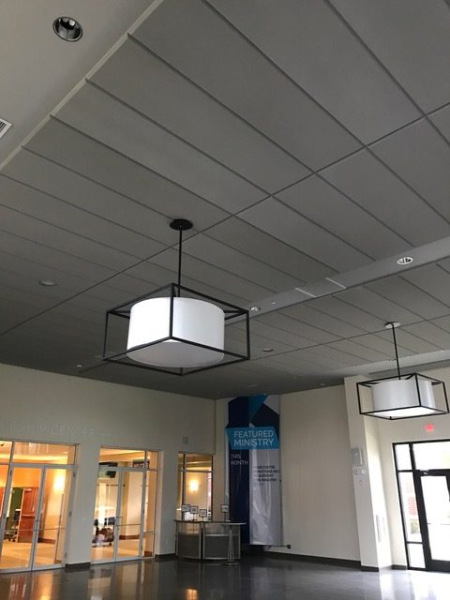

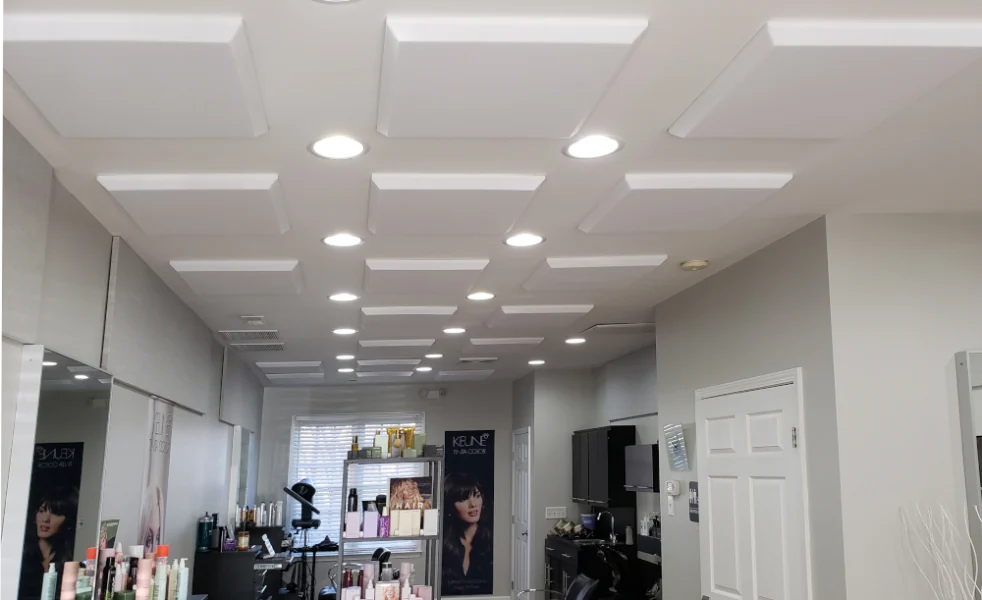

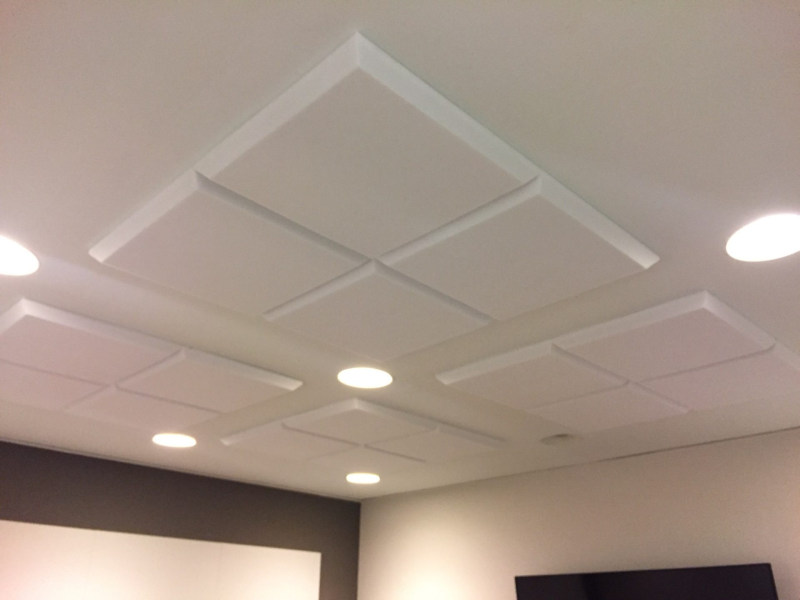

Sample Installations
