CoreBoo™ T&G Strip Perf Panel

Our CoreBOO Perf Panel line revolves around the idea of resonant sound absorption, which involves trapping air to modify certain frequencies of sound. Different hole sizes and their densities provide selective absorption of different frequencies, all which can be varied to a greater or lesser extent based on installation method and related ‘air’ space allocated behind our panels.

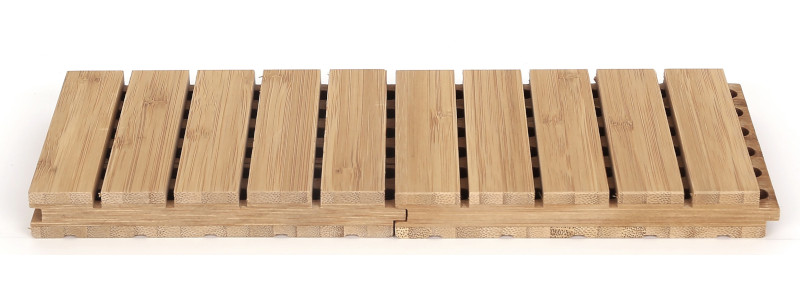

The CoreBOO ‘T&G Strip’ Perf Panels are linear planks available in 3 different face width profiles, with each strip being separated by 2mm, which allows for the centering of a thick perforation through the plank assembly.

Features

  • Large-format wall panel
  • Available in multiple colorways to accentuate design.
  • Standard and simple installation methods
  • Class A fire-rating (ASTM E84-17)

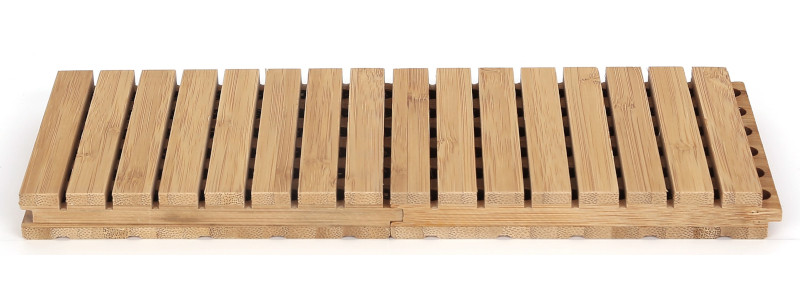

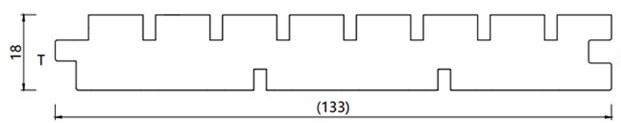

Narrow Plank

Individual Slat Width 16mm (~ 5/8”)
Plank Width 128mm (~ 5”)
Plank Length 2 or 2.9m
(~ 78″ or 114″)
Plank Thickness 18mm (~ 3/4″)

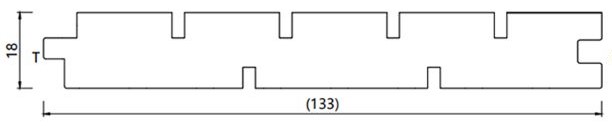

Standard Plank

Individual Slat Width 23mm (~ 7/8”)
Plank Width 128mm (~ 5”)
Plank Length 2 or 2.9m
(~ 78″ or 114″)
Plank Thickness 18mm (~ 3/4″)

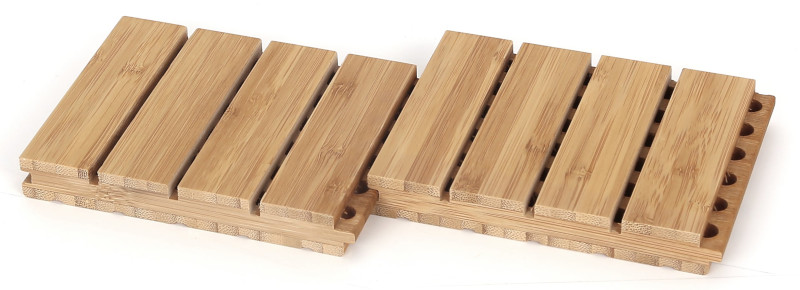

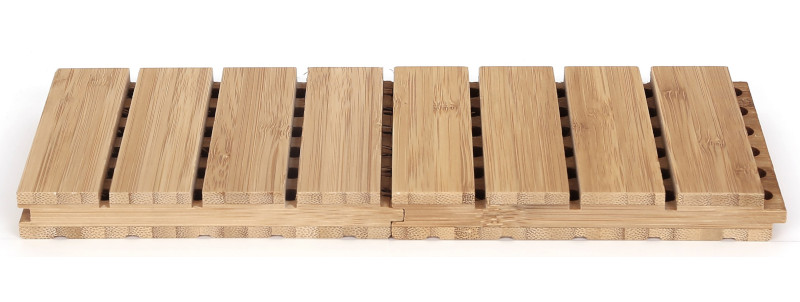

Wide Plank

Individual Slat Width 23mm (~ 7/8”)
Plank Width 128mm (~ 5”)
Plank Length 2 or 2.9m
(~ 78″ or 114″)
Plank Thickness 28mm (~ 1-1/8”)

UV Lacquer Options (for interior applications only)

UV white

UV Light

UV Dark2

UV black

UV walnut

Rubbed Oil Options (can be used inside or outside)

OIL - White

OIL - Walnut

OIL - Teak

OIL - Natural

OIL - Hazel

OIL - Grey

OIL - Black

Click image to view product brochure.

Purchase Samples

Ready to Order?

Lead time and shipping costs vary by product.  If you are ready to place an order, CLICK HERE to get a quote for your CoreBOO Panels project.

Customizations:

  • Color (topical stains available – see: Color Option Chart)
  • “FSC” material available

Installation:

  • Direct Application

Environmental Compliance

  • Made from sustainably harvested, rapidly renewable bamboo (5-year harvesting cycle)
  • E0 (low-VOC) and NAUF (No Added Urea Formaldehyde) adhesives and coatings
  • CARB 2 and LEED-Compliant (FSC material available)

Composition

  • Bamboo – 100% bamboo
  • Substrate(s) –
    • FELT – Recycled PET
    • SOLID/Flexi – Multiply plywood
    • OPEN – Recycled component aluminum
    • AIR MESH – 100% bamboo

Finish

  • Standard product (Dark/Medium/Light) – UV cured water-based urethan
  • “Stains” – Waco Exterior Oil
