COREBOO™ ‘DROP-In’ SLAT Panels
The CoreBOO DROP-IN Slat Panels are similar to our standard Slat Panels but are customized by size and depth to fit seamlessly into standard ceiling grid assemblies. Both the FLAT and the TALL versions use the same slat profile size (as standards), but they are oriented either horizontally (in the FLAT) or vertically (in the TALL). The acoustic performance is similar for each of the versions, with the difference being more visual (ie: aesthetic) than anything else. NOTE: other slat sizes and/or panels dimensions are available, so please inquire if interested.
SLAT Panel profiles:
 |
 |

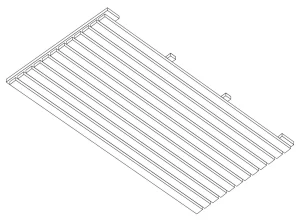

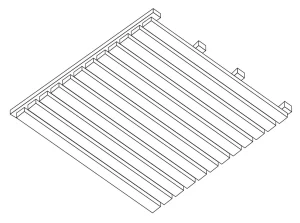

| FLAT Drop-In (2’x2’) | FLAT Drop-In (4’x2’) |
FLAT profile
- Slat width: 35mm (~1-3/8”)
- Slat height: 16mm (~5/8”)
- Gap spacing: 25mm (1”)
 |
 |

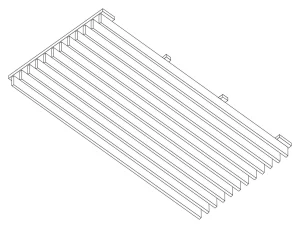

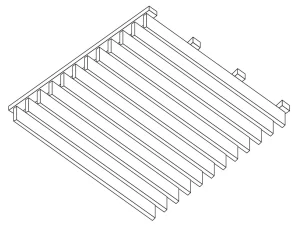

| TALL Drop-In (2’x2’) | TALL Drop-In (4’x2’) |
TALL profile
- Slat width: 16mm (~5/8”)
- Slat height: 35mm (~1-3/8”)
- Gap spacing: 34mm (~1-3/8”)
SLAT Panel configurations (ie: ‘backer’ types):
AIR MESH
|

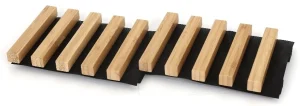

The ‘AIR- MESH’ construction is made by mounting the CoreBOO Slats onto a ½” bamboo cross beam and sandwiching an acoustic ‘Air Mesh’ fabric between the 2 layers. The Air Mesh fabric is designed to provide high noise reduction coefficients for the assembly (NRC = 0.75 when there is an 8” or greater ‘air plenum’ above the panel). |

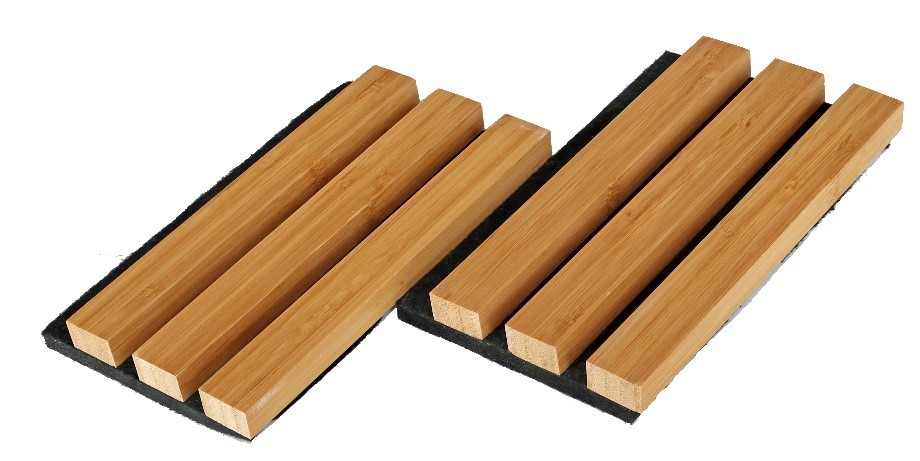

PET
|
The ‘FELT’ construction uses a 3/8” recycled PET felt as the panel substrate, providing an NRC of 0.30. The PET thickness can also be increased for higher NRC values. The ‘default’ PET color is BLACK, though other colors are also available (inquire if interested). |
AIR MESH
|
| The ‘AIR- MESH’ construction is made by mounting the CoreBOO Slats onto a ½” bamboo cross beam and sandwiching an acoustic ‘Air Mesh’ fabric between the 2 layers. The Air Mesh fabric is designed to provide high noise reduction coefficients for the assembly (NRC = 0.75 when there is an 8” or greater ‘air plenum’ above the panel). |
PET
|
| The ‘FELT’ construction uses a 3/8” recycled PET felt as the panel substrate, providing an NRC of 0.30. The PET thickness can also be increased for higher NRC values. The ‘default’ PET color is BLACK, though other colors are also available (inquire if interested). |
Note: the images shown only represent the general construction of the ‘configuration’ shown (actual Slat profiles/size are shown above)
Click image to view product brochure.
Ready to Order?
Lead time and shipping costs vary by product. If you are ready to place an order, CLICK HERE to get a quote for your CoreBOO Panels project.
Installation:
- Direct Application
Customizations:
- Slat profiles (ie: dimensions) and spacing between slats can be customized.
- PET substrate thickness and color can also be customized based on the application and need.
- “FSC” bamboo material is available.
Environmental Compliance
- Made from sustainably harvested, rapidly renewable bamboo (5-year harvesting cycle)
- E0 (low-VOC) and NAUF (No Added Urea Formaldehyde) adhesives and coatings
- CARB 2 and LEED-Compliant (FSC material available)
Composition
- Bamboo – 100% bamboo
- For PET version: Recycled-content PET
Finish
- UV lacquers (5 standard colors)
- Matte Oil (7 standard colors)
Product Documentation
- Product Data Sheet
- CSI Specification
- Installation Instructions
