COREBOO™ ‘DROP-IN’ PERFORATED Panels
The CoreBOO DROP-IN Perforated Panels are similar to our standard Perforated FELT Panels but are sized to fit standard ceiling grid assemblies. The panels are available in 3 standard perforations sizes and patterns, and like the Perforated Felt panels are made using a sandwich construction where the CoreBOO veneer is laminated onto a thin, recycled aluminum substate (adds rigidity, stability, and fire-resistance), and then that layer is laminated onto a 24mm recycled PET felt substrate. NOTE: other perforation patterns and/or panel sizes are available, so please inquire if interested.
PERFORATED Panel profiles:

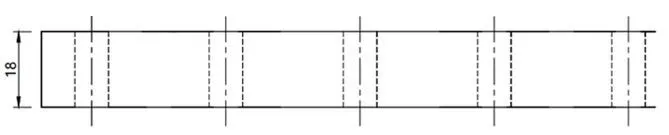

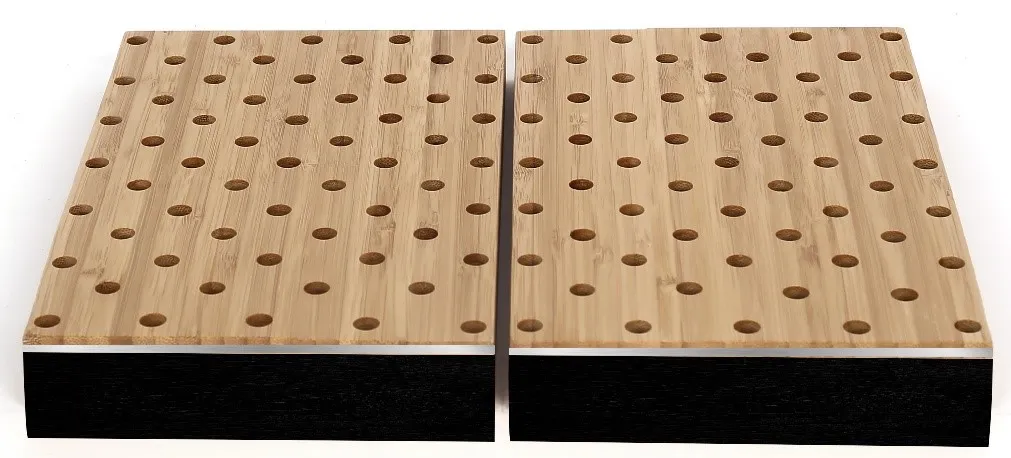

OFFSET
| Perforation Diameter | 8mm (~ 1/3”) |
| Performation Separation | 32mm (~1-1/3”) |
| Plank Width | 24” (600mm) |
| Plank Length | 24″ (600m) 48″ (1200mm) |
| Plank Thickness | ~ 1-1/16″ (27mm) |

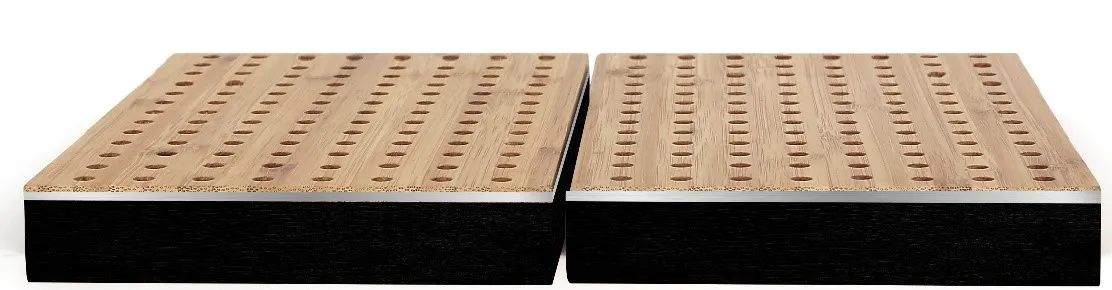

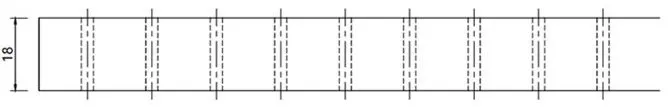

CLASSIC
| Perforation Diameter | 6mm (~ 1/4”) |
| Performation Separation | 16mm (~2/3”) |
| Plank Width | 24” (600mm) |
| Plank Length | 24″ (600m) 48″ (1200mm) |
| Plank Thickness | ~ 1-1/16″ (27mm) |

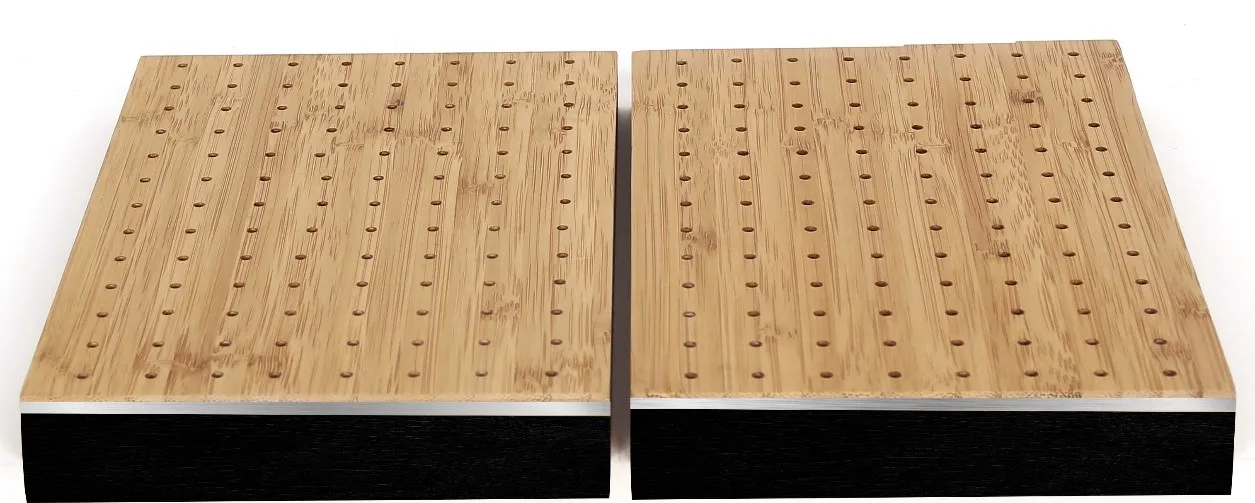

MICRO
| Perforation Diameter | 1mm (~ 1/25”) |
| Performation Separation | 3mm (~1/8”) |
| Plank Width | 24” (600mm) |
| Plank Length | 24″ (600m) 48″ (1200mm) |
| Plank Thickness | ~ 1-1/16″ (27mm) |
Click image to view CoreBOO Drop-IN Panels pages on brochure.
Ready to Order?
Lead time and shipping costs vary by product. If you are ready to place an order, CLICK HERE to get a quote for your CoreBOO Panels project.
Customizations:
- Perforated panels can be made with perforation diameters down to 0.5mm.
- Substrate thickness and color can also be customized based on the application and need.
- “FSC” bamboo material is available.
Installation:
- Direct Application
- Hanging
Environmental Compliance
- Made from sustainably harvested, rapidly renewable bamboo (5-year harvesting cycle)
- E0 (low-VOC) and NAUF (No Added Urea Formaldehyde) adhesives and coatings
- CARB 2 and LEED-Compliant (FSC material available)
Composition
- Bamboo – 100% bamboo on recycled aluminum sheeting
- Substrate – Recycled PET
Finish
- UV lacquers (5 standard colors)
- Matte Oil (7 standard colors)
